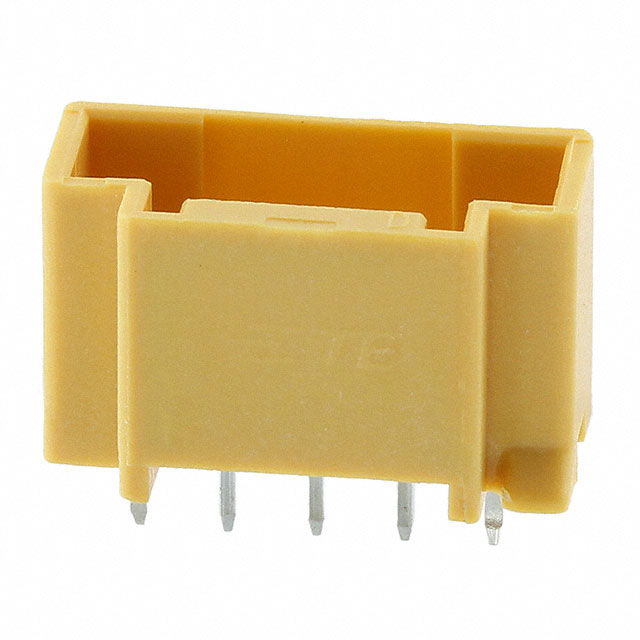

| Part Number | 3-1971032-5 | 3-1971032-2 | 3-1971032-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 5 | 2 | 3 |
| Number of Rows | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - |
| Number of Positions Loaded | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder |
| Contact Length - Mating | - | - | - |
| Contact Length - Post | 0.102" (2.60mm) | 0.102" (2.60mm) | 0.102" (2.60mm) |
| Overall Contact Length | - | - | - |
| Insulation Height | 0.256" (6.50mm) | 0.256" (6.50mm) | 0.256" (6.50mm) |
| Contact Shape | Square | Square | Square |
| Contact Finish - Mating | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Features | Board Lock | Board Lock | Board Lock |
| Operating Temperature | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Yellow | Yellow | Yellow |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 50V | 50V | 50V |
