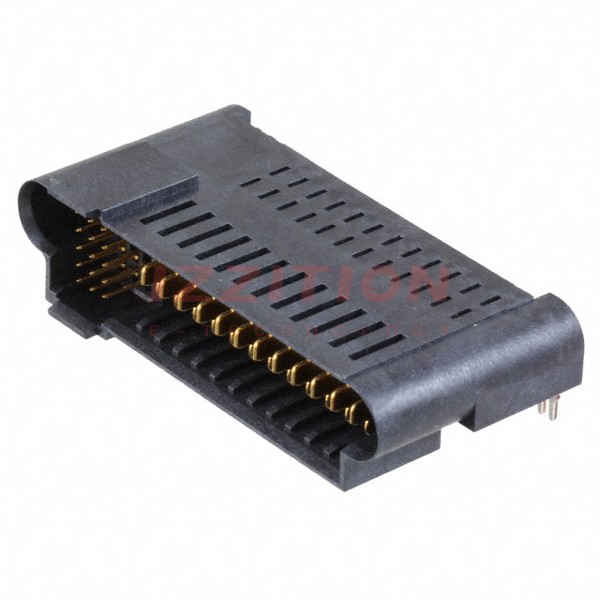

| Part Number | 3-1926730-0 | 3-1926739-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Usage | - | - |
| Connector Type | Plug, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets |
| Connector Style | - | - |
| Number of Positions | 27 | 27 |
| Number of Positions Loaded | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 5 | - |
| Number of Columns | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit |
| Contact Layout, Typical | 15 Signal, 12 Power | 15 Signal, 12 Power |
| Features | Board Guide, Mating Guide | Guide Pin |
| Contact Finish | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | - | 30.0µin (0.76µm) |
| Color | Black | Black |
