3-1871843-3
  • Share:

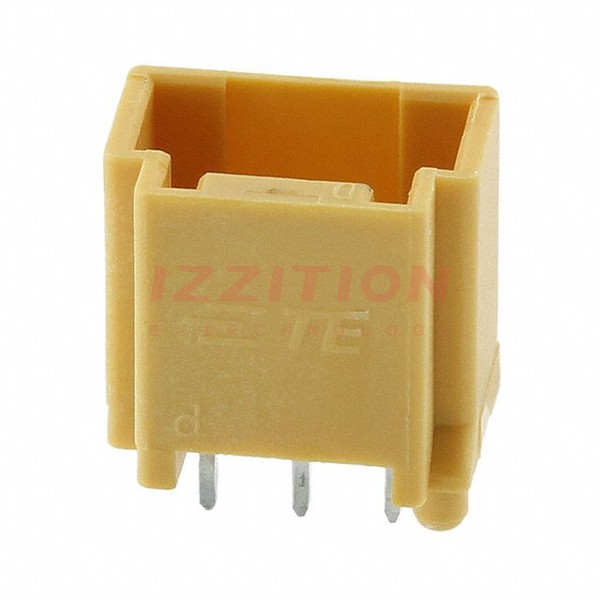

TE Connectivity AMP Connectors 3-1871843-3

Manufacturer No:
3-1871843-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
3-1871843-3 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 3POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.445" (11.30mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Guide, Keying Slot
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Yellow
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.66
549

Please send RFQ , we will respond immediately.
