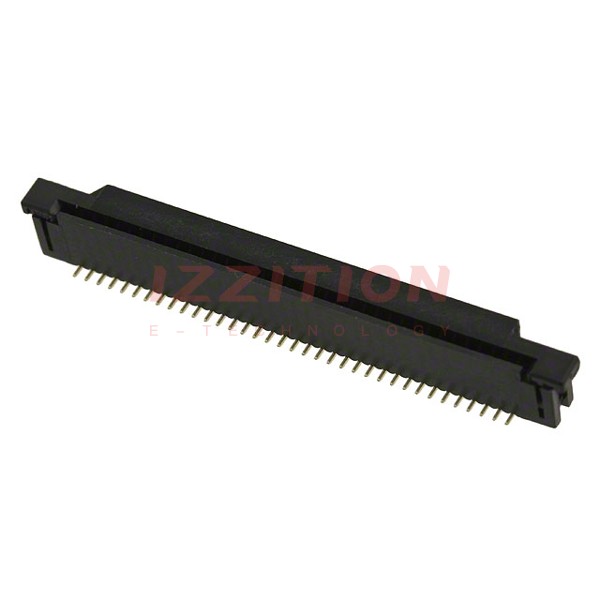

| Part Number | 3-1734248-6 | 3-1734248-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Flat Flex Type | FPC | FPC |
| Mounting Type | Surface Mount | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided |
| Number of Positions | 36 | 30 |
| Pitch | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Termination | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm |
| Height Above Board | 0.217" (5.50mm) | 0.217" (5.50mm) |
| Locking Feature | Slide Lock | Slide Lock |
| Cable End Type | Tapered | Tapered |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Housing Material | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T |
| Actuator Material | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T |
| Features | Zero Insertion Force (ZIF) | Zero Insertion Force (ZIF) |
| Voltage Rating | 125V | 125V |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
