3-1470209-8
  • Share:

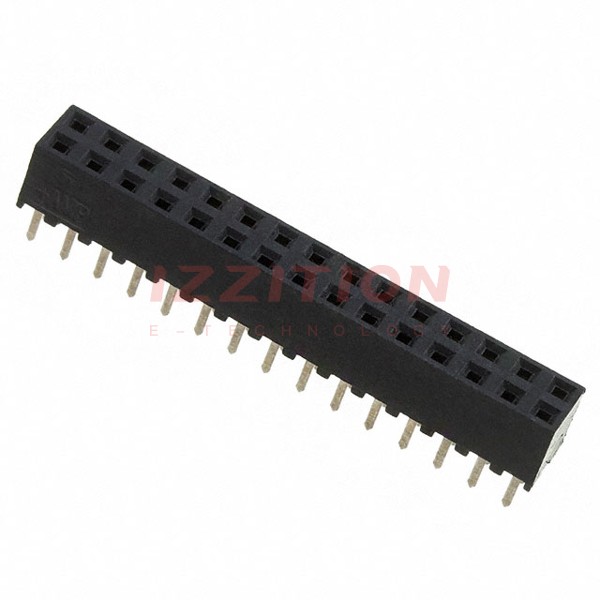

TE Connectivity AMP Connectors 3-1470209-8

Manufacturer No:
3-1470209-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
3-1470209-8 Datasheet
ECAD Model:
-
Description:
CONN RCPT 30POS 0.079 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board
Number of Positions:30
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Insulation Color:Black
Insulation Height:0.177" (4.50mm)
Contact Length - Post:0.102" (2.60mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):-
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.70
235

Please send RFQ , we will respond immediately.

Similar Products

Part Number 3-1470209-8 3-1470209-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active
Connector Type Receptacle Receptacle
Contact Type Female Socket Female Socket
Style Board to Board Board to Board
Number of Positions 30 20
Number of Positions Loaded All All
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm)
Number of Rows 2 2
Row Spacing - Mating 0.079" (2.00mm) 0.079" (2.00mm)
Mounting Type Through Hole Through Hole
Termination Solder Solder
Fastening Type Push-Pull Push-Pull
Contact Finish - Mating Gold Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm) 8.00µin (0.203µm)
Insulation Color Black Black
Insulation Height 0.177" (4.50mm) 0.177" (4.50mm)
Contact Length - Post 0.102" (2.60mm) 0.102" (2.60mm)
Operating Temperature -40°C ~ 105°C -40°C ~ 105°C
Material Flammability Rating UL94 V-0 UL94 V-0
Contact Finish - Post Tin Tin
Mated Stacking Heights - -
Ingress Protection - -
Features - -
Current Rating (Amps) - -
Voltage Rating 250VAC 250VAC
