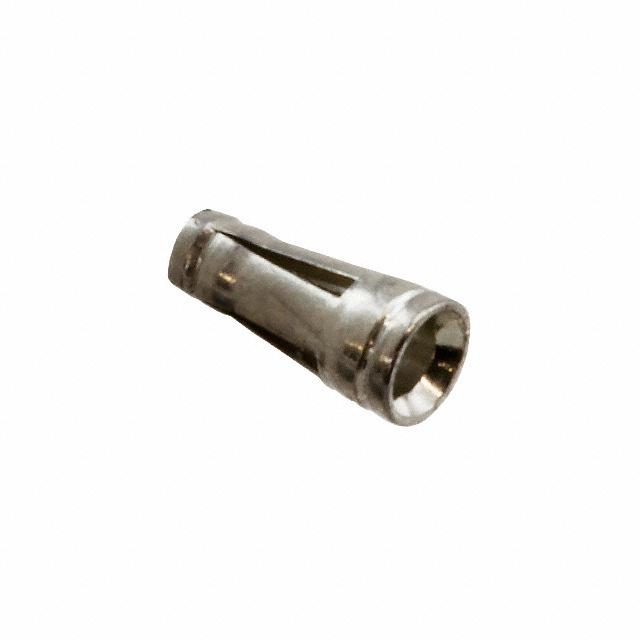

| Part Number | 3-1437514-7 | 3-1437510-7 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active |
| Tail Type | No Tail | No Tail |
| Termination | Solder | Solder |
| Length - Overall | 0.100" (2.54mm) | 0.203" (5.16mm) |
| Accepts Pin Diameter | 0.016" ~ 0.021" (0.41mm ~ 0.53mm) | 0.016" ~ 0.018" (0.41mm ~ 0.46mm) |
| Accepts Square Pin Size | 0.011" x 0.018" (0.28mm x 0.46mm) | - |
| Pin Hole Diameter | - | - |
| Mounting Hole Diameter | 0.044" (1.12mm) | 0.056" (1.42mm) |
| Flange Diameter | - | 0.062" (1.57mm) |
| Tail Diameter | - | - |
| Socket Depth | - | 0.150" (3.81mm) |
| Contact Material | Beryllium Copper | Beryllium Copper |
| Contact Finish | Tin-Lead | Gold |
| Contact Finish Thickness | - | - |
