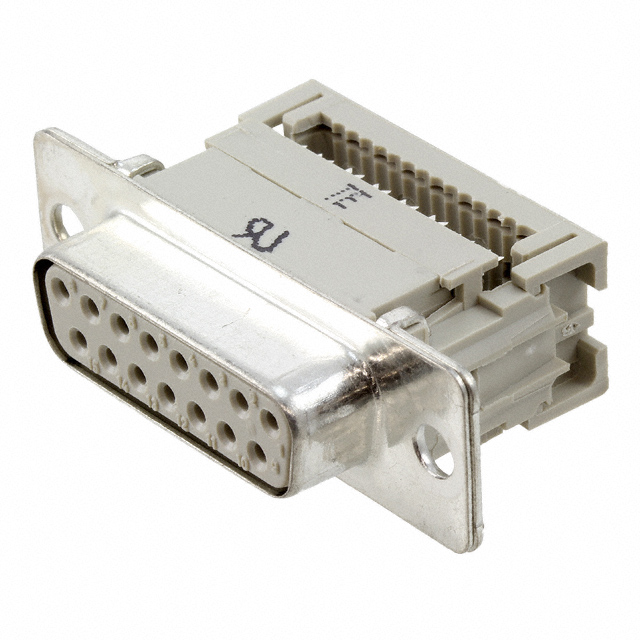

| Part Number | 3-1393486-5 | 3-1393486-6 | 3-1393486-7 | 3-1393486-4 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 15 | 25 | 37 | 9 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 2 (DA, A) | 3 (DB, B) | 4 (DC, C) | 1 (DE, E) |
| Contact Type | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Termination | IDC, Ribbon Cable | IDC, Ribbon Cable | IDC, Ribbon Cable | IDC, Ribbon Cable |
| Primary Material | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Material Flammability Rating | - | - | - | - |
| Current Rating (Amps) | - | - | - | - |
| Backset Spacing | - | - | - | - |
| Features | Shielded | Shielded | Shielded | Shielded |
