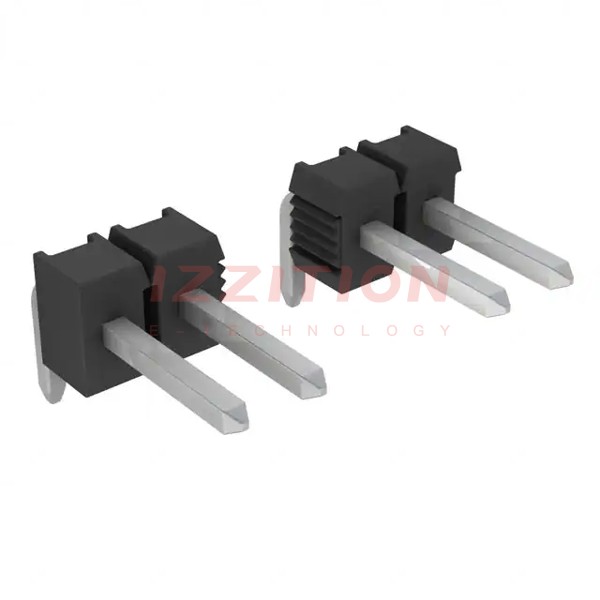

TE Connectivity AMP Connectors 3-104349-0

Manufacturer No:
3-104349-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
3-104349-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 6POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.138" (3.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:-
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:30VAC
0 Remaining View Similar

In Stock

-
267

Please send RFQ , we will respond immediately.
