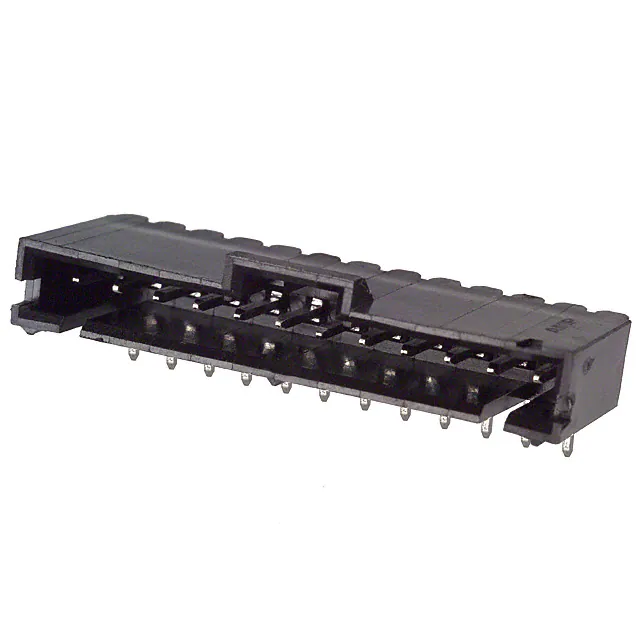

| Part Number | 3-103634-4 | 3-103634-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 12 | 10 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Latch Holder | Latch Holder |
| Contact Length - Mating | 0.230" (5.84mm) | 0.230" (5.84mm) |
| Contact Length - Post | 0.130" (3.30mm) | 0.130" (3.30mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Contact Shape | Square | Square |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Thermoplastic | Thermoplastic |
| Features | Keying Slot | Keying Slot |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | 3A | 3A |
| Voltage Rating | - | - |
