Please send RFQ , we will respond immediately.

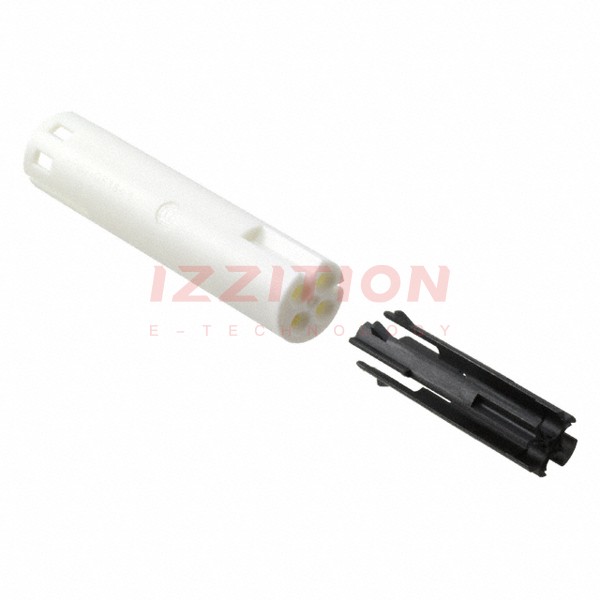

| Part Number | 293702-1 | 293722-1 | 293702-2 | 293703-1 | 293702-3 | 293602-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active |
| Style | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Board to Cable/Wire |
| Connector Type | Plug Housing for Socket Contact | Receptacle Housing for Pin Contact | Plug Housing for Socket Contact | Receptacle Housing for Pin Contact | Plug Housing for Socket Contact | Plug, Female Sockets |
| Number of Positions | 4 | 7 | 4 | 4 | 4 | 3 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Solder |
| Pitch | - | - | - | - | - | - |
| Fastening Type | - | - | - | - | - | - |
| Features | - | Keyed | - | - | - | Keyed |
| Housing Color | White | Natural | Black | White | Gray | Natural |
| Wire Gauge | - | - | - | - | - | - |
| Contact Material | - | - | - | - | - | - |
| Contact Finish | - | - | - | - | - | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 85°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 85°C |
