Please send RFQ , we will respond immediately.

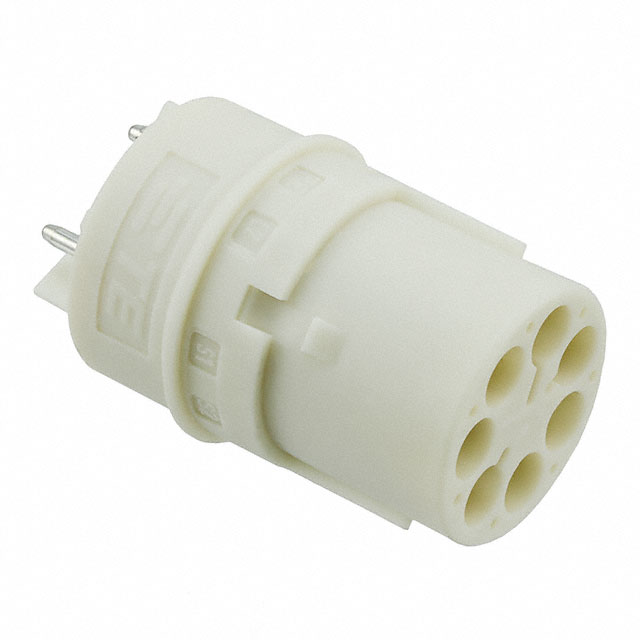

| Part Number | 293695-3 | 293696-3 | 293615-3 | 293655-3 | 293695-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Style | Board to Cable/Wire | Board to Cable/Wire | Cable/Wire to Cable/Wire or Board | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Receptacle, Male Pins | Plug, Female Sockets | Plug Housing for Socket Contact | Plug, Female Sockets | Receptacle, Male Pins |
| Number of Positions | 5 | 5 | 5 | 2 | 5 |
| Mounting Type | Through Hole | Through Hole | Free Hanging (In-Line) | Through Hole | Through Hole |
| Termination | Solder | Solder | Crimp | Solder | Solder |
| Pitch | - | - | - | 0.146" (3.70mm) | - |
| Fastening Type | - | - | - | - | - |
| Features | Keyed | Keyed | Keyed | Board Guide, Keying HV-4 | Keyed |
| Housing Color | Natural | Natural | Natural | White | Natural |
| Wire Gauge | - | - | - | - | - |
| Contact Material | - | - | - | Copper Alloy | - |
| Contact Finish | - | - | - | Tin | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 120°C | -40°C ~ 85°C |
