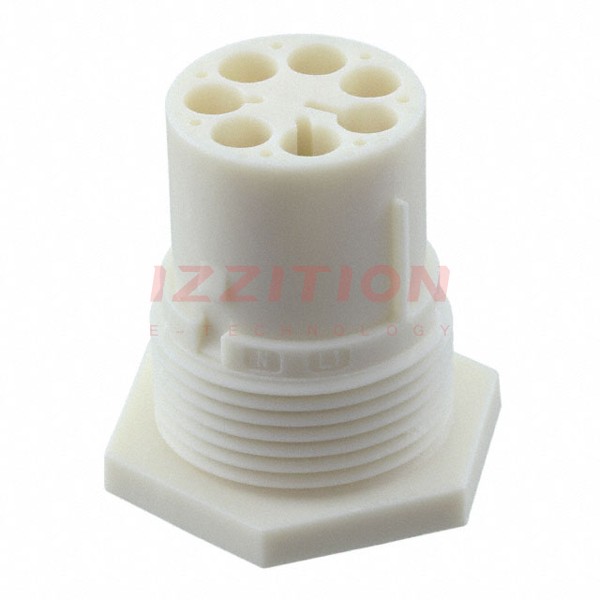

| Part Number | 293688-2 | 293688-3 | 293388-2 | 293648-2 | 293688-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire |
| Connector Type | Receptacle Housing for Pin Contact | Receptacle Housing for Pin Contact | Plug Housing for Socket Contact | Outlet Housing for Pin Contact | Receptacle Housing for Pin Contact |
| Number of Positions | 5 | 5 | 2 | 2 | 5 |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Pitch | - | - | - | - | - |
| Fastening Type | - | - | - | - | - |
| Features | Keyed | Keyed | Keying HV-3 | Keying LV-2 | Keyed |
| Housing Color | Natural | Natural | White | White | Natural |
| Wire Gauge | - | - | - | - | - |
| Contact Material | - | - | - | - | - |
| Contact Finish | - | - | - | - | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | - | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 85°C |
