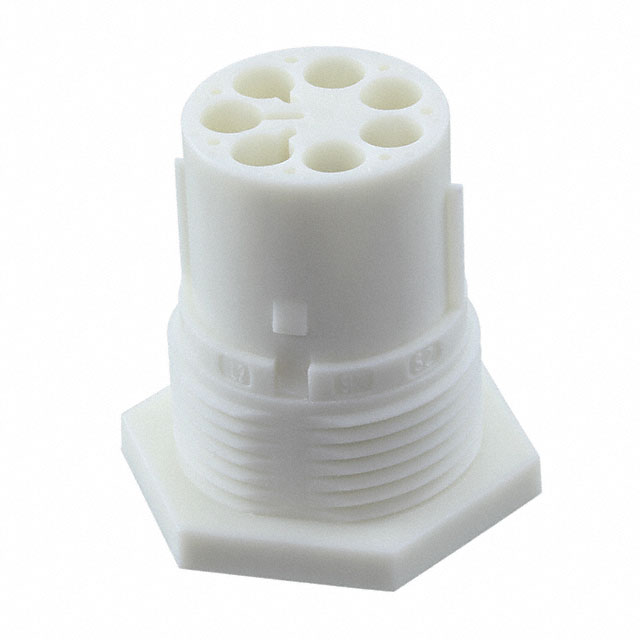

| Part Number | 293674-5 | 293654-5 | 293674-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active |
| Style | Cable/Wire to Cable/Wire | Board to Cable/Wire | Cable/Wire to Cable/Wire |
| Connector Type | Receptacle Housing for Pin Contact | Plug, Female Sockets | Receptacle Housing for Pin Contact |
| Number of Positions | 6 | 2 | 6 |
| Mounting Type | Panel Mount | Through Hole, Right Angle | Panel Mount |
| Termination | Solder | Solder | Solder |
| Pitch | - | 0.146" (3.70mm) | - |
| Fastening Type | - | - | - |
| Features | Keyed | Board Lock, Keying LV-2 | Keyed |
| Housing Color | Natural | White | Natural |
| Wire Gauge | - | - | - |
| Contact Material | - | Copper Alloy | - |
| Contact Finish | - | Tin | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 120°C | -40°C ~ 85°C |
