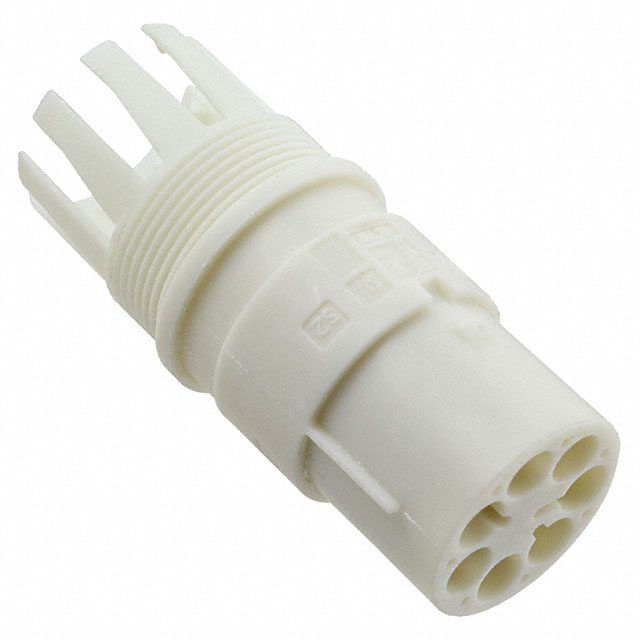

| Part Number | 293657-3 | 293687-3 | 293650-3 | 293651-3 | 293652-3 | 293653-3 | 293654-3 | 293655-3 | 293656-3 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Cable/Wire to Cable/Wire or Board |
| Connector Type | Receptacle Housing for Pin Contact | Plug Housing for Socket Contact | T-Splitter | Distributor | Outlet, Male Pin | Outlet, Male Pin | Plug, Female Sockets | Plug, Female Sockets | Plug Housing for Socket Contact |
| Number of Positions | 6 | 5 | 2 | 6 | 2 | 2 | 2 | 2 | 6 |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | - | - | Solder | Solder | Solder | Solder | Crimp |
| Pitch | - | - | 0.146" (3.70mm) | - | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | - |
| Fastening Type | - | - | - | - | - | - | - | - | - |
| Features | Keyed | Keyed | Keying HV-5 | Keying LV-2 | Board Lock, Keying HV-4 | Board Guide, Keying HV-4 | Board Lock, Keying HV-4 | Board Guide, Keying HV-4 | Keyed |
| Housing Color | Natural | Natural | White | White | White | White | White | White | Natural |
| Wire Gauge | - | - | - | - | - | - | - | - | - |
| Contact Material | - | - | - | Copper Alloy | - | - | Copper Alloy | Copper Alloy | - |
| Contact Finish | - | - | - | - | Tin | Tin | Tin | Tin | - |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA6), Nylon 6 | Polybutylene Terephthalate (PBT), Glass Filled | - | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 85°C |
