Please send RFQ , we will respond immediately.

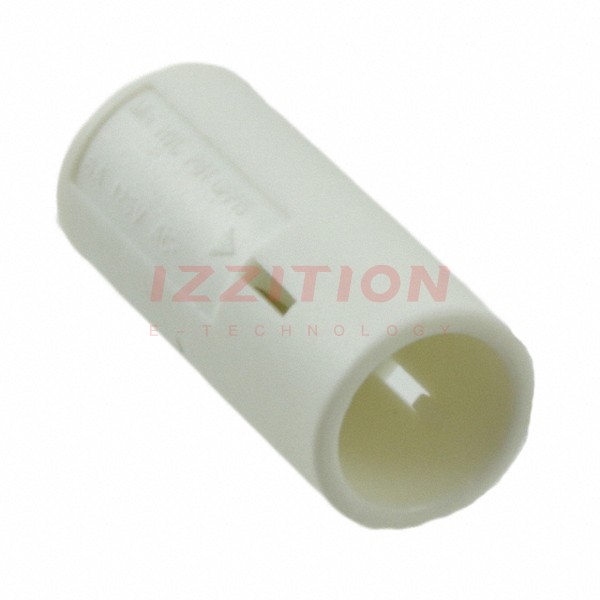

| Part Number | 293653-2 | 293653-3 | 293654-2 | 293655-2 | 293653-5 | 293653-4 | 293650-2 | 293651-2 | 293652-2 | 293653-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Cable/Wire to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Outlet, Male Pin | Outlet, Male Pin | Plug, Female Sockets | Plug, Female Sockets | Outlet, Male Pin | Outlet, Male Pin | T-Splitter | Distributor | Outlet, Male Pin | Outlet, Male Pin |
| Number of Positions | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 7 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole, Right Angle | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | - | - | Solder | Solder |
| Pitch | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | - | 0.146" (3.70mm) | 0.146" (3.70mm) |
| Fastening Type | - | - | - | - | - | - | - | - | - | - |
| Features | Board Guide, Keying HV-3 | Board Guide, Keying HV-4 | Board Lock, Keying HV-3 | Board Guide, Keying HV-3 | Board Guide, Keying LV-2 | Board Guide, Keying HV-5 | Keying HV-3 | Keying HV-2 and HV-3 | Board Lock, Keying HV-3 | Board Guide, Keying HV-2 |
| Housing Color | White | White | White | White | White | White | White | White | White | White |
| Wire Gauge | - | - | - | - | - | - | - | - | - | - |
| Contact Material | - | - | Copper Alloy | Copper Alloy | - | - | - | Copper Alloy | - | - |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin | - | - | Tin | Tin |
| Housing Material | - | - | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | - | - | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA6), Nylon 6 | Polybutylene Terephthalate (PBT), Glass Filled | - |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
