Please send RFQ , we will respond immediately.

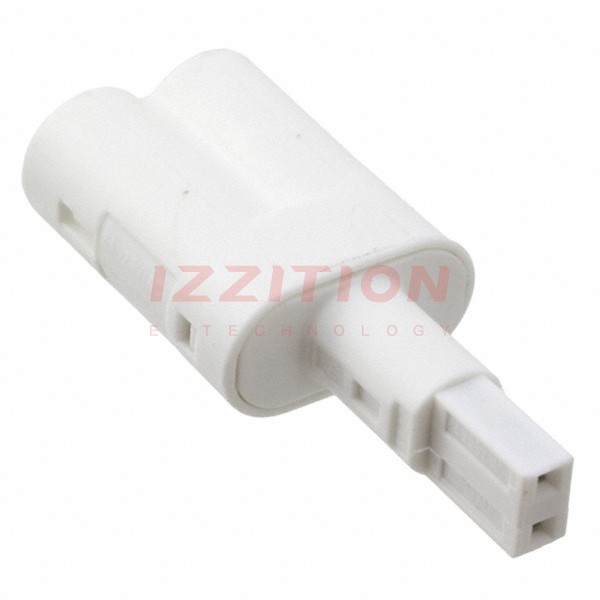

| Part Number | 293650-3 | 293650-4 | 293651-3 | 293653-3 | 293654-3 | 293657-3 | 293656-3 | 293652-3 | 293655-3 | 293650-1 | 293650-2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Board to Cable/Wire | Board to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire |
| Connector Type | T-Splitter | T-Splitter | Distributor | Outlet, Male Pin | Plug, Female Sockets | Receptacle Housing for Pin Contact | Plug Housing for Socket Contact | Outlet, Male Pin | Plug, Female Sockets | T-Splitter | T-Splitter |
| Number of Positions | 2 | 2 | 6 | 2 | 2 | 6 | 6 | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Through Hole, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole, Right Angle | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | - | - | - | Solder | Solder | Crimp | Crimp | Solder | Solder | - | - |
| Pitch | 0.146" (3.70mm) | 0.146" (3.70mm) | - | 0.146" (3.70mm) | 0.146" (3.70mm) | - | - | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) |
| Fastening Type | - | - | - | - | - | - | - | - | - | - | - |
| Features | Keying HV-5 | Keying LV-2 | Keying LV-2 | Board Guide, Keying HV-4 | Board Lock, Keying HV-4 | Keyed | Keyed | Board Lock, Keying HV-4 | Board Guide, Keying HV-4 | Keying HV-4 | Keying HV-3 |
| Housing Color | White | White | White | White | White | Natural | Natural | White | White | White | White |
| Wire Gauge | - | - | - | - | - | - | - | - | - | - | - |
| Contact Material | - | - | Copper Alloy | - | Copper Alloy | - | - | - | Copper Alloy | - | - |
| Contact Finish | - | - | - | Tin | Tin | - | - | Tin | Tin | - | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA6), Nylon 6 | - | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
