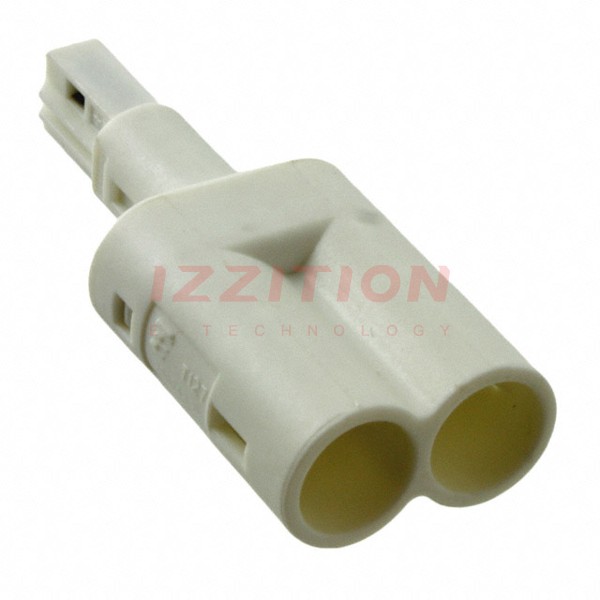

| Part Number | 293649-2 | 293648-2 | 293649-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire |
| Connector Type | T-Splitter | Outlet Housing for Pin Contact | T-Splitter |
| Number of Positions | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) |
| Termination | - | Crimp | - |
| Pitch | 0.146" (3.70mm) | - | 0.146" (3.70mm) |
| Fastening Type | - | - | - |
| Features | Keying HV-2 and LV-2 | Keying LV-2 | Keying HV-2 and HV-4 |
| Housing Color | White | White | White |
| Wire Gauge | - | - | - |
| Contact Material | - | - | - |
| Contact Finish | - | - | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
