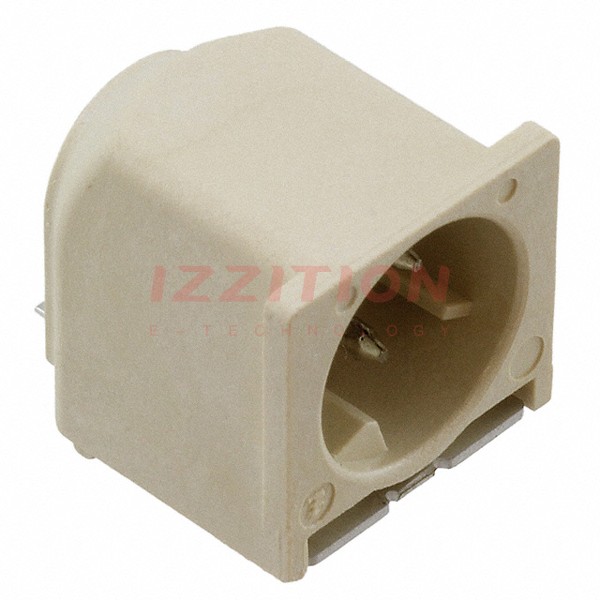

| Part Number | 293415-1 | 293615-1 | 293415-2 | 293315-1 | 293411-1 | 293412-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Style | Board to Cable/Wire | Cable/Wire to Cable/Wire or Board | Board to Cable/Wire | Board to Cable/Wire | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board |
| Connector Type | Receptacle, Male Pins | Plug Housing for Socket Contact | Receptacle, Male Pins | Outlet, Male Pin | Plug Housing for Socket Contact | Receptacle Housing for Pin Contact |
| Number of Positions | 4 | 5 | 4 | 2 | 4 | 4 |
| Mounting Type | Surface Mount, Right Angle | Free Hanging (In-Line) | Surface Mount, Right Angle | Through Hole, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Solder | Crimp | Solder | Solder | Crimp | Crimp |
| Pitch | - | - | - | 0.146" (3.70mm) | - | - |
| Fastening Type | - | - | - | - | - | - |
| Features | Board Guide | Keyed | Board Guide | Board Lock, Keying HV-1 | - | - |
| Housing Color | White | Natural | Black | White | White | White |
| Wire Gauge | - | - | - | - | - | - |
| Contact Material | Copper Alloy | - | Copper Alloy | - | - | - |
| Contact Finish | Tin | - | Tin | Tin | - | - |
| Housing Material | Thermoplastic | Polyamide (PA), Nylon, Glass Filled | Thermoplastic | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 85°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
