Please send RFQ , we will respond immediately.

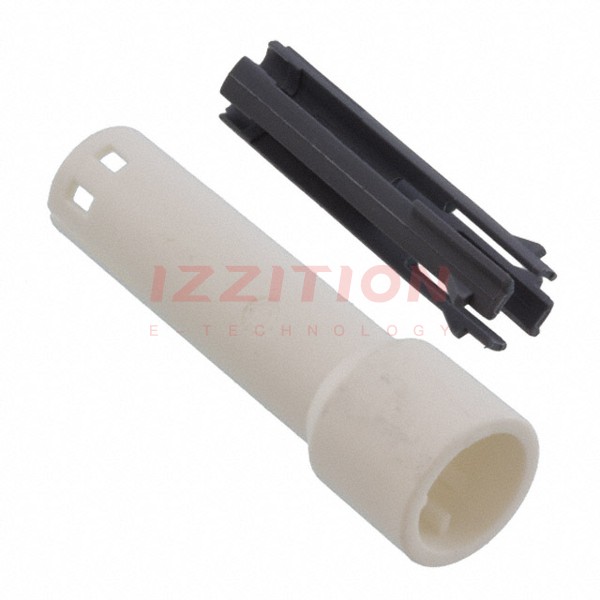

| Part Number | 293412-1 | 293412-2 | 293415-1 | 293412-3 | 293411-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete |
| Style | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Board to Cable/Wire | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board |
| Connector Type | Receptacle Housing for Pin Contact | Receptacle Housing for Pin Contact | Receptacle, Male Pins | Receptacle Housing for Pin Contact | Plug Housing for Socket Contact |
| Number of Positions | 4 | 4 | 4 | 4 | 4 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Surface Mount, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Solder | Crimp | Crimp |
| Pitch | - | - | - | - | - |
| Fastening Type | - | - | - | - | - |
| Features | - | - | Board Guide | - | - |
| Housing Color | White | Black | White | Gray | White |
| Wire Gauge | - | - | - | - | - |
| Contact Material | - | - | Copper Alloy | - | - |
| Contact Finish | - | - | Tin | - | - |
| Housing Material | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 | Thermoplastic | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
