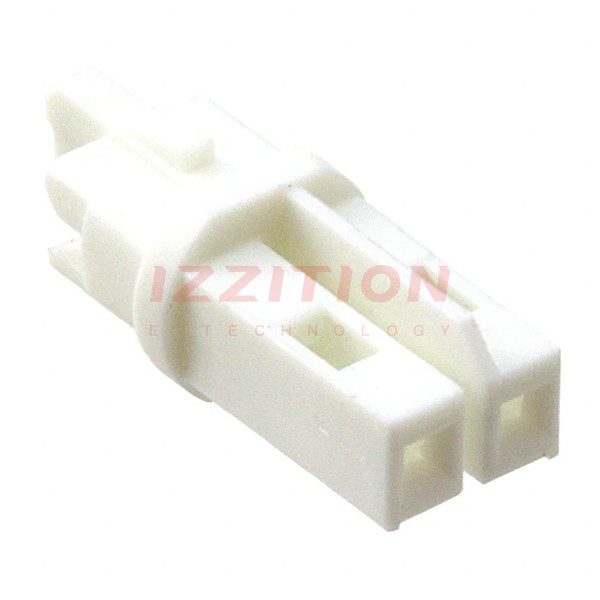

| Part Number | 293388-1 | 293388-5 | 293388-2 | 293388-3 | 293388-4 | 293688-1 | 293308-1 | 293387-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire or Board | Cable/Wire to Cable/Wire | Board to Cable/Wire | Cable/Wire to Cable/Wire or Board |
| Connector Type | Plug Housing for Socket Contact | Plug Housing for Socket Contact | Plug Housing for Socket Contact | Plug Housing for Socket Contact | Plug Housing for Socket Contact | Receptacle Housing for Pin Contact | Plug, Female Sockets | Outlet Housing for Pin Contact |
| Number of Positions | 2 | 2 | 2 | 2 | 2 | 5 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Through Hole | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Solder | Crimp |
| Pitch | - | - | - | - | - | - | 0.146" (3.70mm) | 0.142" (3.60mm) |
| Fastening Type | - | - | - | - | - | - | - | - |
| Features | Keying HV-2 | Keying LV-2 | Keying HV-3 | Keying HV-4 | Keying HV-5 | Keyed | Board Guide, Keying HV-1 | Keying HV-3 |
| Housing Color | White | White | White | White | White | Natural | White | White |
| Wire Gauge | - | - | - | - | - | - | - | - |
| Contact Material | - | - | - | - | - | - | Phosphor Bronze | - |
| Contact Finish | - | - | - | - | - | - | Tin | - |
| Housing Material | - | - | - | - | - | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA66), Nylon 6/6 | Polybutylene Terephthalate (PBT), Glass Filled |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 85°C | -40°C ~ 120°C | -40°C ~ 120°C |
