Please send RFQ , we will respond immediately.

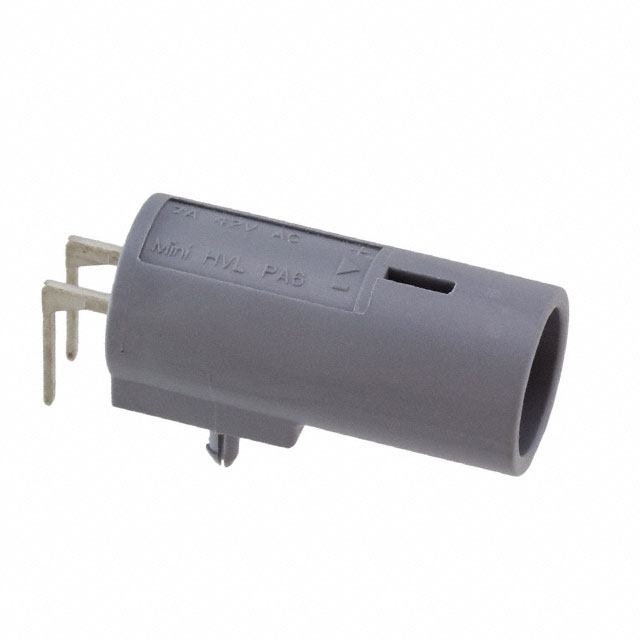

| Part Number | 293315-4 | 293311-4 | 293313-4 | 293315-1 | 293315-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete | Active | Active |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Outlet, Male Pin | Plug, Female Sockets | Outlet, Male Pin | Outlet, Male Pin | Outlet, Male Pin |
| Number of Positions | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder |
| Pitch | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) |
| Fastening Type | - | - | - | - | - |
| Features | Board Lock, Keying LV-1 | Board Lock, Keying HV-2 | Board Guide, Keying LV-1 | Board Lock, Keying HV-1 | Board Lock, Keying HV-1 |
| Housing Color | Gray | Red | Gray | White | Black |
| Wire Gauge | - | - | - | - | - |
| Contact Material | - | Phosphor Bronze | - | - | - |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Housing Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6 | - | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
