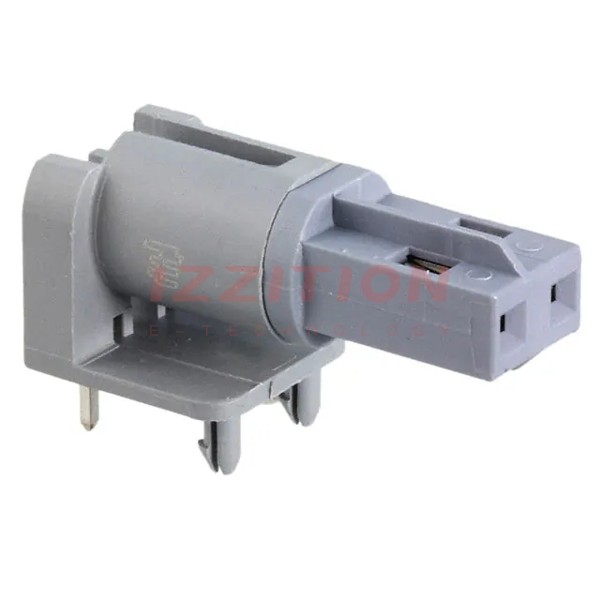

| Part Number | 293311-5 | 293313-5 | 293311-6 | 293311-1 | 293311-2 | 293311-4 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Plug, Female Sockets | Outlet, Male Pin | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Pitch | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) |
| Fastening Type | - | - | - | - | - | - |
| Features | Board Lock, Keying LV-1 | Board Guide, Keying LV-2 | Board Lock, Keying LV-2 | Board Lock, Keying HV-1 | Board Lock, Keying HV-1 | Board Lock, Keying HV-2 |
| Housing Color | Gray | Yellow | Yellow | White | Black | Red |
| Wire Gauge | - | - | - | - | - | - |
| Contact Material | Phosphor Bronze | - | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
| Housing Material | Polyamide (PA66), Nylon 6/6 | - | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
