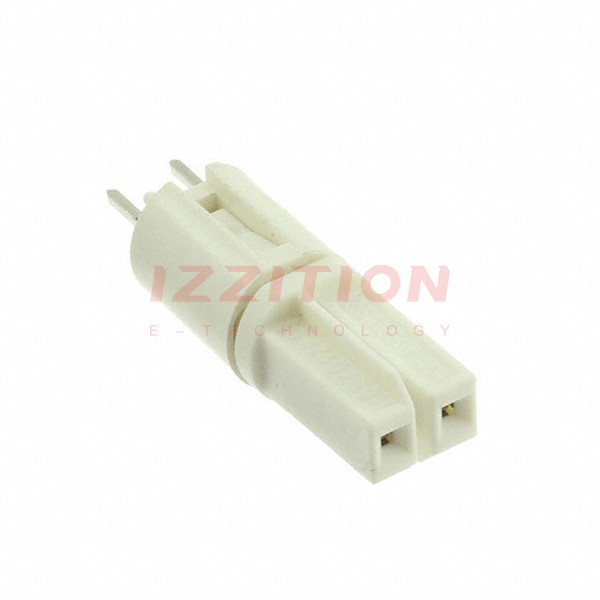

| Part Number | 293308-1 | 293388-1 | 293308-6 | 293308-2 | 293308-5 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete |
| Style | Board to Cable/Wire | Cable/Wire to Cable/Wire or Board | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Plug, Female Sockets | Plug Housing for Socket Contact | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Crimp | Solder | Solder | Solder |
| Pitch | 0.146" (3.70mm) | - | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) |
| Fastening Type | - | - | - | - | - |
| Features | Board Guide, Keying HV-1 | Keying HV-2 | Board Guide, Keying LV-2 | Board Guide, Keying HV-1 | Board Guide, Keying LV-1 |
| Housing Color | White | White | Yellow | Black | Gray |
| Wire Gauge | - | - | - | - | - |
| Contact Material | Phosphor Bronze | - | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | - | Tin | Tin | Tin |
| Housing Material | Polyamide (PA66), Nylon 6/6 | - | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
