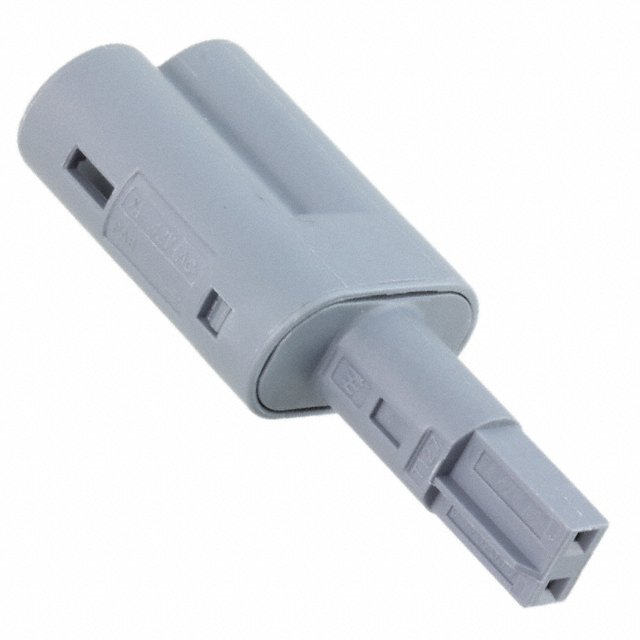

| Part Number | 293234-7 | 293234-8 | 293234-9 | 293234-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire |
| Connector Type | T-Splitter | T-Splitter | T-Splitter | T-Splitter |
| Number of Positions | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | - | - | - | - |
| Pitch | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) | 0.146" (3.70mm) |
| Fastening Type | - | - | - | - |
| Features | Keying LV-1 | Keying LV-2 | Keying HV-1 | Keying HV-1 |
| Housing Color | Gray | Yellow | Black | White |
| Wire Gauge | - | - | - | - |
| Contact Material | - | - | - | - |
| Contact Finish | - | - | - | - |
| Housing Material | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 | Polyamide (PA6), Nylon 6 |
| Operating Temperature | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C | -40°C ~ 120°C |
