292371-5
  • Share:

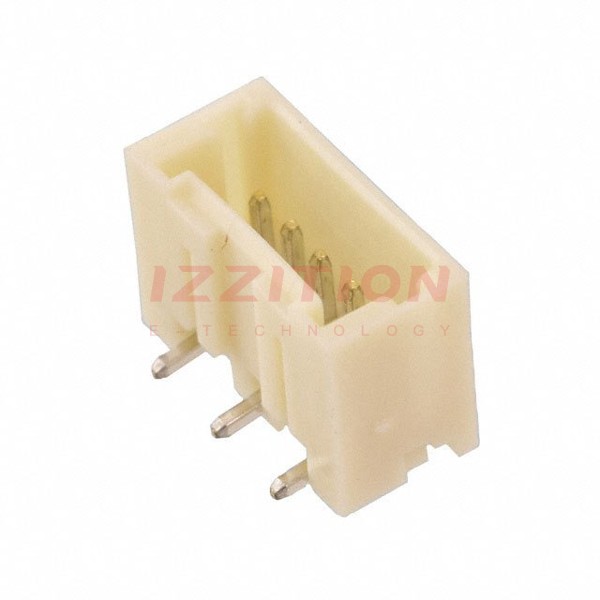

TE Connectivity AMP Connectors 292371-5

Manufacturer No:
292371-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tape & Reel (TR)
Datasheet:
292371-5 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 5POS 1.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.094" (2.40mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.272" (6.91mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Pick and Place
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:125VAC
0 Remaining View Similar

In Stock

$0.52
1,647

Please send RFQ , we will respond immediately.
