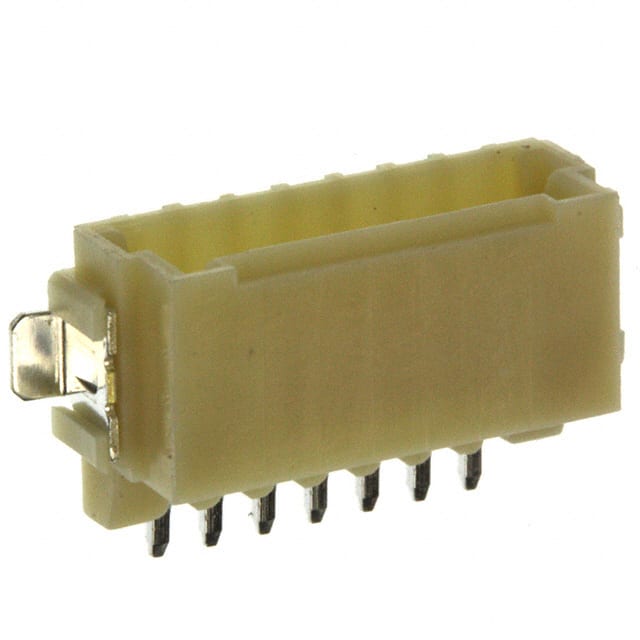

| Part Number | 292227-7 | 292227-8 | 292227-9 | 292228-7 | 292207-7 | 292227-2 | 292227-3 | 292227-4 | 292227-5 | 292227-6 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
| Number of Positions | 7 | 8 | 9 | 7 | 7 | 2 | 3 | 4 | 5 | 6 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Through Hole | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Kinked Pin, Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Contact Length - Mating | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) | 0.094" (2.40mm) |
| Contact Length - Post | - | - | - | - | 0.118" (3.00mm) | - | - | - | - | - |
| Overall Contact Length | - | - | - | - | 0.307" (7.80mm) | - | - | - | - | - |
| Insulation Height | 0.193" (4.90mm) | 0.193" (4.90mm) | 0.193" (4.90mm) | 0.193" (4.90mm) | 0.272" (6.91mm) | 0.193" (4.90mm) | 0.193" (4.90mm) | 0.193" (4.90mm) | 0.193" (4.90mm) | 0.193" (4.90mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | - | - | - | - | 39.4µin (1.00µm) | - | - | - | - | - |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Glass Filled | Polyamide (PA6T), Nylon 6T, Glass Filled | Polyamide (PA6T), Nylon 6T, Glass Filled | Polyamide (PA6T), Nylon 6T, Glass Filled | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA6T), Nylon 6T, Glass Filled | Polyamide (PA6T), Nylon 6T, Glass Filled | Polyamide (PA6T), Nylon 6T, Glass Filled | Polyamide (PA6T), Nylon 6T, Glass Filled | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Features | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Solder Retention | Board Guide | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention | Board Guide, Solder Retention |
| Operating Temperature | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C | -30°C ~ 105°C |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Beige | Beige | Beige | Beige | Gray | Beige | Beige | Beige | Beige | Beige |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 50VAC | 50VAC | 50VAC | 50VAC | 50VAC | 50VAC | 50VAC | 50VAC | 50VAC | 50VAC |
