284617-1
  • Share:

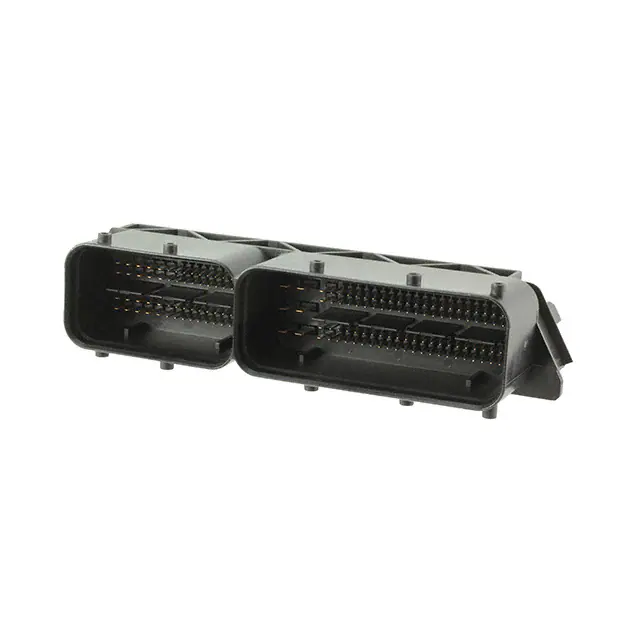

TE Connectivity AMP Connectors 284617-1

Manufacturer No:
284617-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
284617-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 154POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade; Male Pin
Pitch - Mating:-
Number of Positions:154 (120 + 34 Power)
Number of Rows:-
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Panel Mount, Through Hole, Right Angle
Termination:Solder
Fastening Type:-
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:-
Contact Shape:-
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:-
Features:Board Guide, Board Lock
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$19.77
8

Please send RFQ , we will respond immediately.
