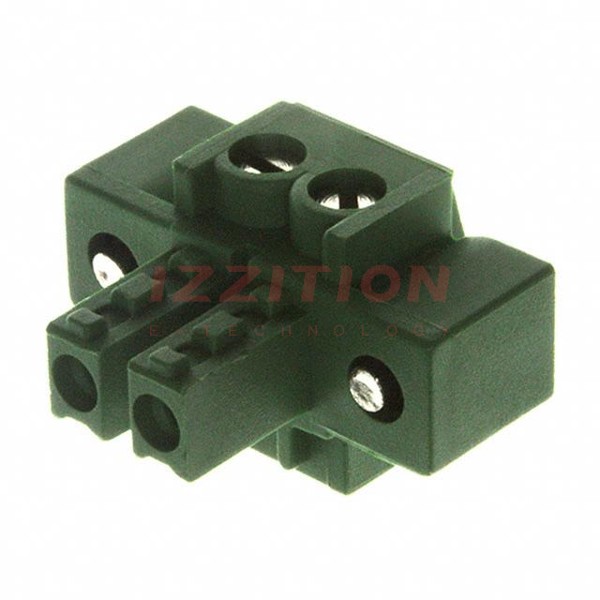

| Part Number | 284511-2 | 284511-4 | 284512-2 | 284511-3 | 284511-6 | 284517-2 | 284514-2 | 284516-2 | 284511-5 | 284541-2 | 284511-8 | 284518-2 | 284519-2 | 284513-2 | 284510-2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Discontinued at Digi-Key | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets | Header, Male Pins, Shrouded (2 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets |
| Number of Positions | 2 | 4 | 2 | 3 | 6 | 2 | 2 | 2 | 5 | 2 | 8 | 2 | 2 | 2 | 2 |
| Positions Per Level | 2 | 4 | 2 | 3 | 6 | 2 | 2 | 2 | 5 | 2 | 8 | 2 | 2 | 2 | 2 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.138" (3.50mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.150" (3.81mm) | 0.138" (3.50mm) |
| Header Orientation | - | - | 90°, Right Angle | - | - | Vertical | Vertical | Vertical | - | 90°, Right Angle | - | Vertical | Vertical | 90°, Right Angle | - |
| Plug Wire Entry | 180° | 180° | - | 180° | 180° | - | - | - | 180° | - | 180° | - | - | - | 180° |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Solder | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Solder | Solder | Solder | Screw - Rising Cage Clamp | Solder | Screw - Rising Cage Clamp | Solder | Solder | Solder | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Current - UL | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A | 11 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 14-30 AWG | 14-30 AWG | - | 14-30 AWG | 14-30 AWG | - | - | - | 14-30 AWG | - | 14-30 AWG | - | - | - | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² | 0.05-2mm² | - | 0.05-2mm² | 0.05-2mm² | - | - | - | 0.05-2mm² | - | 0.05-2mm² | - | - | - | 0.05-2mm² |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Features | Mating Flange | Mating Flange | - | Mating Flange | Mating Flange | - | - | Mating Flange | Mating Flange | Mating Flange | Mating Flange | Interlocking (Side) | Mating Flange | - | Mating Flange |
