Part Number	284509-2	284539-2	284519-2	284509-3	284506-2	284507-2
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active
Type	Plug, Female Sockets	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)	Plug, Female Sockets	Plug, Female Sockets	Plug, Female Sockets
Number of Positions	2	2	2	3	2	2
Positions Per Level	2	2	2	3	2	2
Number of Levels	1	1	1	1	1	1
Pitch	0.150" (3.81mm)	0.138" (3.50mm)	0.150" (3.81mm)	0.150" (3.81mm)	0.138" (3.50mm)	0.150" (3.81mm)
Header Orientation	-	90°, Right Angle	Vertical	-	-	-
Plug Wire Entry	180°	-	-	180°	180°	180°
Termination Style	Screw - Rising Cage Clamp	Solder	Solder	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Mounting Type	Free Hanging (In-Line)	Through Hole	Through Hole	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Current - IEC	-	-	-	-	-	-
Voltage - IEC	-	-	-	-	-	-
Current - UL	12 A	11 A	11 A	12 A	11 A	11 A
Voltage - UL	150 V	300 V	300 V	150 V	300 V	300 V
Wire Gauge or Range - AWG	14-30 AWG	-	-	14-30 AWG	14-30 AWG	14-30 AWG
Wire Gauge or Range - mm²	0.05-2mm²	-	-	0.05-2mm²	0.05-2mm²	0.05-2mm²
Color	Green	Green	Green	Green	Green	Green
Operating Temperature	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C
Contact Mating Finish	Tin	Tin	Tin	Tin	Tin	Tin
Features	Interlocking (Side)	Mating Flange	Mating Flange	Interlocking (Side)	Side Stacking	Side Stacking

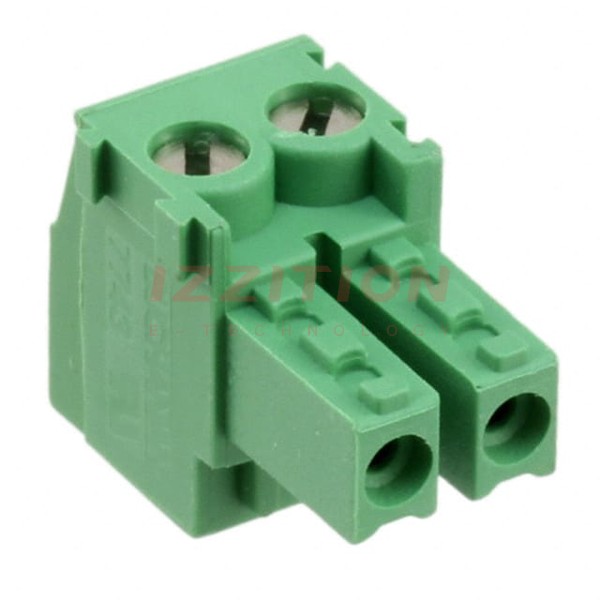

TE Connectivity AMP Connectors 284509-2
