Please send RFQ , we will respond immediately.

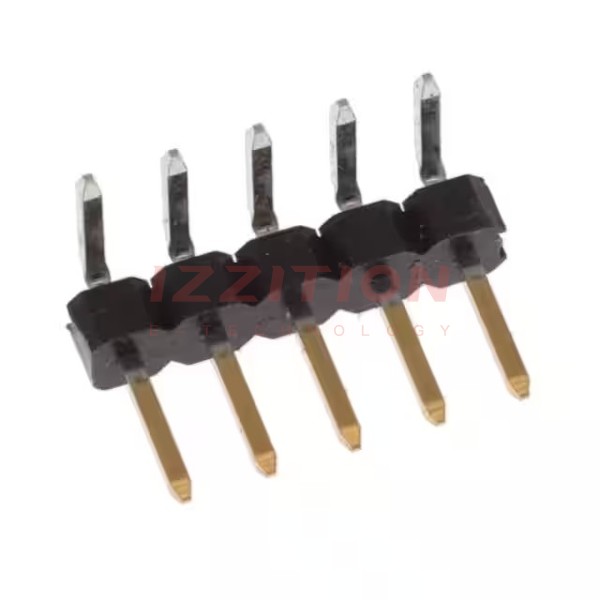

| Part Number | 2842124-5 | 2842128-5 | 2842124-6 | 2842144-5 | 2842127-5 | 2842124-8 | 2842126-5 | 2842154-5 | 2842104-5 | 2842114-5 | 2842122-5 | 2842123-5 | 2842124-2 | 2842124-3 | 2842124-4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway | Header, Breakaway |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 5 | 10 | 6 | 10 | 10 | 8 | 10 | 10 | 5 | 5 | 5 | 5 | 2 | 3 | 4 |
| Number of Rows | 1 | 2 | 1 | 2 | 2 | 1 | 2 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | 0.079" (2.00mm) | - | 0.079" (2.00mm) | 0.079" (2.00mm) | - | 0.079" (2.00mm) | 0.079" (2.00mm) | - | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All | All | All | All | All | All | All | All | All | All |
| Style | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board | Board to Board |
| Shrouding | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded | Unshrouded |
| Mounting Type | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Surface Mount | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Surface Mount | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Length - Mating | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Contact Length - Post | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | - | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | - | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Overall Contact Length | - | 0.327" (8.30mm) | - | - | 0.327" (8.30mm) | - | 0.327" (8.30mm) | - | - | - | - | - | - | - | - |
| Insulation Height | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) | 0.059" (1.50mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 30.0µin (0.76µm) | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 15.0µin (0.38µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | - | - | - | Pick and Place | - | - | - | Pick and Place | Pick and Place | Pick and Place | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A |
| Voltage Rating | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC | 125VAC/DC |
