2842112-8
  • Share:

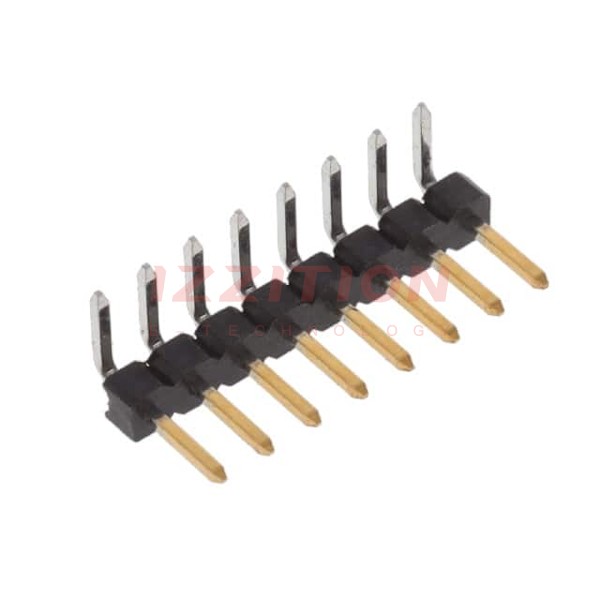

TE Connectivity AMP Connectors 2842112-8

Manufacturer No:
2842112-8
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
2842112-8 Datasheet
ECAD Model:
-
Description:
8P,2MM,BRK HDR,SRRT,2.8,0.76AU,T
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:-
Insulation Height:0.059" (1.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:125VAC/DC
0 Remaining View Similar

In Stock

$2.28
186

Please send RFQ , we will respond immediately.

Similar Products

Part Number 2842112-8 2842142-8   2842122-8   2842116-8   2842114-8   2842115-8   2842102-8   2842110-8   2842111-8   2842112-2   2842112-3   2842112-4   2842112-5   2842112-6
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active Active Active Active Active Active
Connector Type Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway Header, Breakaway
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions 8 16 8 8 8 8 8 8 8 2 3 4 5 6
Number of Rows 1 2 1 1 1 1 1 1 1 1 1 1 1 1
Row Spacing - Mating - 0.079" (2.00mm) - - - - - - - - - - - -
Number of Positions Loaded All All All All All All All All All All All All All All
Style Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board Board to Board
Shrouding Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded Unshrouded
Mounting Type Through Hole, Right Angle Surface Mount Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Surface Mount Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm) 0.157" (4.00mm)
Contact Length - Post 0.110" (2.79mm) - 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) - 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm)
Overall Contact Length - - - - - - - - - - - - - -
Insulation Height 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm) 0.059" (1.50mm)
Contact Shape Square Square Square Square Square Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm) 3.94µin (0.100µm) 3.94µin (0.100µm) 30.0µin (0.76µm) 3.94µin (0.100µm) 15.0µin (0.38µm) 3.94µin (0.100µm) 3.94µin (0.100µm) 15.0µin (0.38µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic Thermoplastic
Features - Pick and Place - Pick and Place Pick and Place Pick and Place Pick and Place - - - - - - -
Operating Temperature -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C -40°C ~ 125°C
Ingress Protection - - - - - - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black Black Black Black Black Black Black
Current Rating (Amps) 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A 2A
Voltage Rating 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC 125VAC/DC
