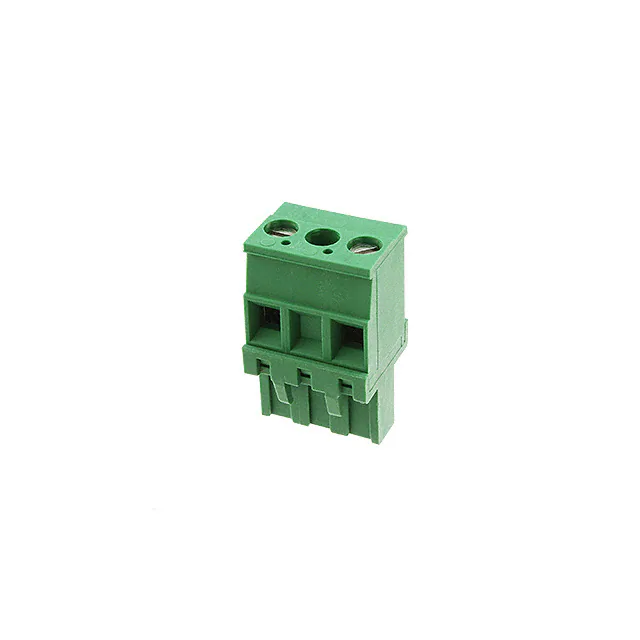

| Part Number | 284051-2 | 284053-2 | 284051-4 | 284051-3 | 284052-2 | 284061-2 | 284056-2 | 284041-2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Plug, Female Sockets | Header, Male Pins, Shrouded (2 Side) | Plug, Female Sockets | Plug, Female Sockets | Header, Male Pins, Shrouded (2 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (2 Side) | Plug, Female Sockets |
| Number of Positions | 2 | 4 | 4 | 3 | 4 | 4 | 4 | 2 |
| Positions Per Level | 2 | 2 | 4 | 3 | 2 | 2 | 2 | 2 |
| Number of Levels | 1 | 2 | 1 | 1 | 2 | 2 | 2 | 1 |
| Pitch | 0.400" (10.16mm) | 0.200" (5.08mm) | 0.400" (10.16mm) | 0.400" (10.16mm) | 0.197" (5.00mm) | 0.200" (5.08mm) | 0.197" (5.00mm) | 0.200" (5.08mm) |
| Header Orientation | - | 90°, Right Angle | - | - | 90°, Right Angle | 90°, Right Angle | Vertical | - |
| Plug Wire Entry | 90° | - | 90° | 90° | - | - | - | 270° |
| Termination Style | Screw - Rising Cage Clamp | Solder | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Solder | Solder | Solder | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - | - | - |
| Current - UL | 15 A | 12 A | 15 A | 15 A | 12 A | 12 A | 12 A | 15 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 12-30 AWG | - | 12-30 AWG | 12-30 AWG | - | - | - | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.05-3mm² | - | 0.05-3mm² | 0.05-3mm² | - | - | - | 0.05-3mm² |
| Color | Green | Green | Green | Green | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Features | Retention Latches (Wire Side) | Interlocking (Side) | Retention Latches (Wire Side) | Retention Latches (Wire Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Retention Latches (Non-Wire Side) |
