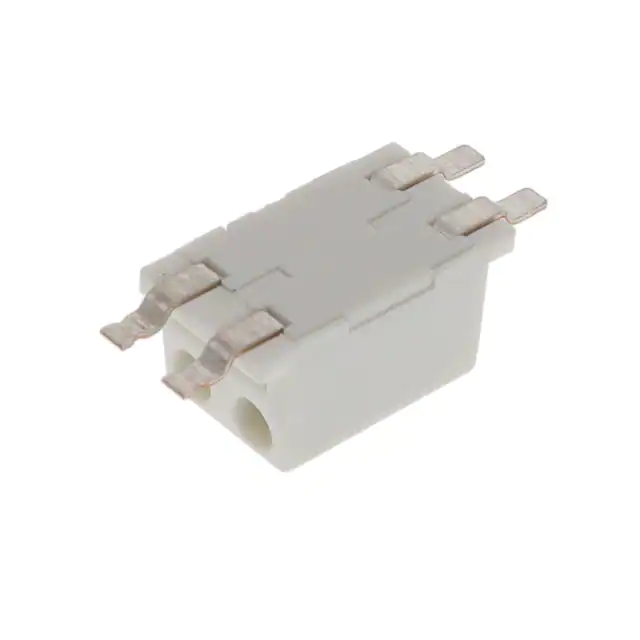

| Part Number | 2834334-2 | 2834334-3 | 2834334-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Connector Type | Receptacle, Poke-In Wire | Receptacle, Poke-In Wire | Receptacle, Poke-In Wire |
| Number of Positions | 2 | 3 | 1 |
| Mounting Type | Board Cutout, Surface Mount | Board Cutout, Surface Mount | Board Cutout, Surface Mount |
| Termination | Solder | Solder | Solder |
| Pitch | 0.157" (4.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Fastening Type | - | - | - |
| Features | - | - | Cap (Cover) |
| Housing Color | White | White | White |
| Wire Gauge | 18-24 AWG | 18-24 AWG | 18-24 AWG |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
