Please send RFQ , we will respond immediately.

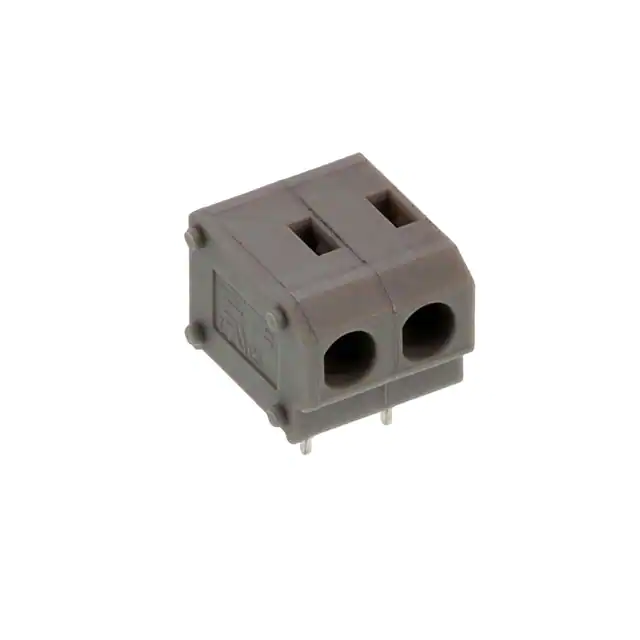

| Part Number | 2834090-1 | 2834098-1 | 2834095-1 | 2834097-1 | 2834080-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 2 | 2 | 2 | 2 | 2 |
| Pitch | 0.200" (5.08mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 10 A | 20 A | 10 A | 10 A | 20 A |
| Voltage | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 14-20 AWG | 12-28 AWG | 14-20 AWG | 14-20 AWG | 12-28 AWG |
| Mounting Type | Through Hole, Kinked Pin | Through Hole | Through Hole, Kinked Pin | Through Hole, Kinked Pin | Through Hole |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Screwless - Spring Cage, Tension Clamp | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Spring Cage, Tension Clamp |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side), Push Button Actuated | Interlocking (Side) | Interlocking (Side), Lever Actuated |
| Color | - | Gray | Gray | Gray | Gray |
