Please send RFQ , we will respond immediately.

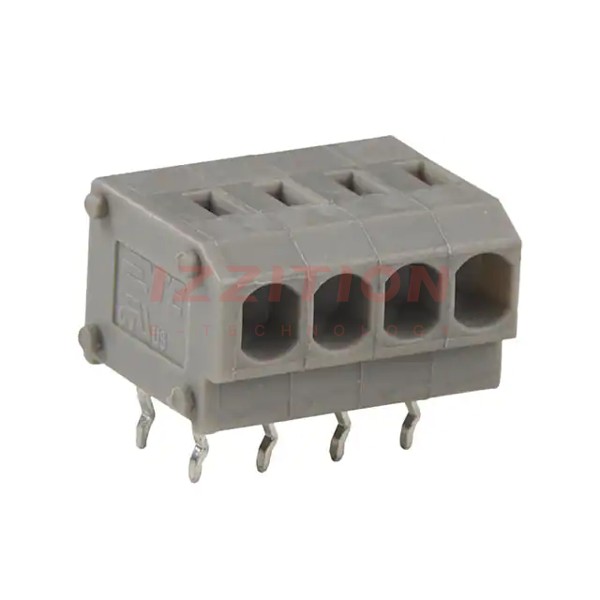

| Part Number | 2834088-2 | 2834089-2 | 2834078-2 | 2834082-2 | 2834085-2 | 2834088-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 3 | 3 | 3 | 3 | 3 | 2 |
| Pitch | 0.150" (3.81mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.100" (2.54mm) | 0.150" (3.81mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | 45° (135°) Angle with Board | Horizontal with Board | 45° (135°) Angle with Board | Horizontal with Board |
| Current | 8 A | 10 A | 16 A | 20 A | 4 A | 8 A |
| Voltage | 300 V | 300 V | 300 V | 300 V | 150 V | 300 V |
| Wire Gauge | 16-20 AWG | 14-20 AWG | 14-28 AWG | 12-28 AWG | 20-28 AWG | 16-20 AWG |
| Mounting Type | Through Hole, Kinked Pin | Through Hole, Kinked Pin | Through Hole | Through Hole | Through Hole | Through Hole, Kinked Pin |
| Wire Termination | Screwless - Leg Spring, Push-In Spring | Screwless - Leg Spring, Push-In Spring | Screwless - Spring Cage, Tension Clamp | Screwless - Spring Cage, Tension Clamp | Screwless - Spring Cage, Tension Clamp | Screwless - Leg Spring, Push-In Spring |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side), Lever Actuated | Interlocking (Side) | Interlocking (Side) |
| Color | - | - | - | Gray | - | - |
