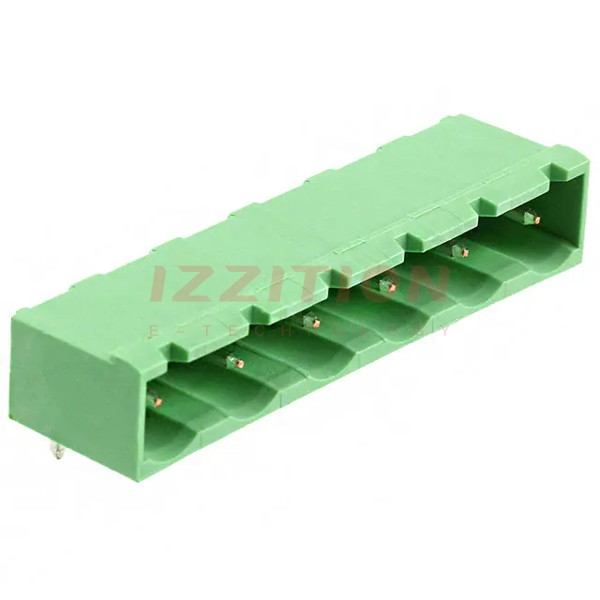

| Part Number | 282966-6 | 282966-2 | 282966-3 | 282966-4 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Discontinued at Digi-Key | Active | Active |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 6 | 2 | 3 | 4 |
| Positions Per Level | 6 | 2 | 3 | 4 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) | 0.300" (7.62mm) |
| Header Orientation | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle | 90°, Right Angle |
| Plug Wire Entry | - | - | - | - |
| Termination Style | Solder | Solder | Solder | Solder |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 15 A | 15 A | 15 A | 15 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | - | - | - |
| Wire Gauge or Range - mm² | - | - | - | - |
| Color | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | - | - | - | - |
