Please send RFQ , we will respond immediately.

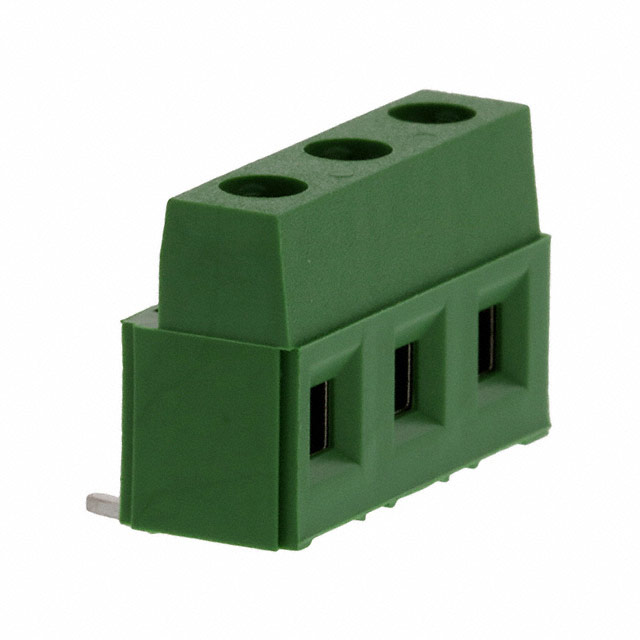

| Part Number | 282854-3 | 282857-3 | 282856-3 | 282858-3 | 282884-3 | 282834-3 | 282844-3 | 282851-3 | 282852-3 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Pitch | 0.295" (7.50mm) | 0.200" (5.08mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.100" (2.54mm) | 0.295" (7.50mm) | 0.200" (5.08mm) | 0.394" (10.00mm) |
| Mating Orientation | Vertical with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Vertical with Board | Vertical with Board |
| Current | 17.5 A | 24 A | 24 A | 24 A | 13.5 A | 10 A | 17.5 A | 17.5 A | 17.5 A |
| Voltage | 300 V | 300 V | 300 V | 600 V | 300 V | 150 V | 300 V | 300 V | 600 V |
| Wire Gauge | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 16-30 AWG | 16-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | High Wire Entry Level, Interlocking (Side) | - | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green |
