Please send RFQ , we will respond immediately.

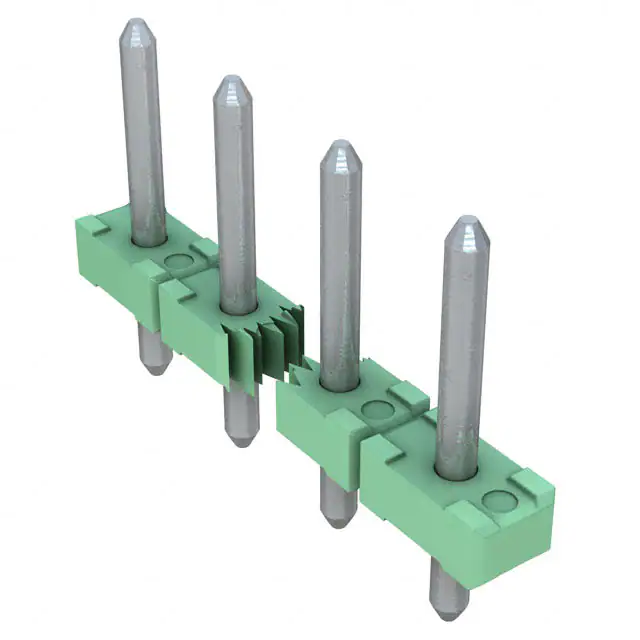

| Part Number | 282833-3 | 282833-4 | 282833-5 | 282833-6 | 282830-3 | 282832-3 | 282833-2 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Type | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded | Plug for Unshrouded Header | Header, Male Pins, Unshrouded | Header, Male Pins, Unshrouded |
| Number of Positions | 3 | 4 | 5 | 6 | 3 | 3 | 2 |
| Positions Per Level | 3 | 4 | 5 | 6 | 3 | 3 | 2 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.394" (10.00mm) |
| Header Orientation | Vertical | Vertical | Vertical | Vertical | - | Vertical | Vertical |
| Plug Wire Entry | - | - | - | - | 90° | - | - |
| Termination Style | Solder | Solder | Solder | Solder | Screw - Rising Cage Clamp | Solder | Solder |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Free Hanging (In-Line) | Through Hole | Through Hole |
| Current - IEC | - | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - | - |
| Current - UL | 15 A | 15 A | 15 A | 15 A | 12 A | 12 A | 15 A |
| Voltage - UL | 600 V | 600 V | 600 V | 600 V | 300 V | 300 V | 600 V |
| Wire Gauge or Range - AWG | - | - | - | - | 12-30 AWG | - | - |
| Wire Gauge or Range - mm² | - | - | - | - | 0.05-2mm² | - | - |
| Color | Green | Green | Green | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Features | - | - | - | - | Side Stacking | Side Stacking | - |
