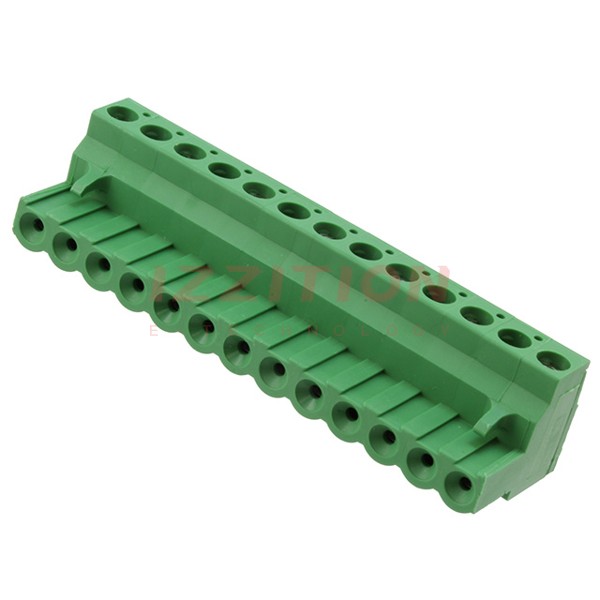

| Part Number | 282809-7 | 282809-2 | 282809-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 7 | 2 | 4 |
| Positions Per Level | 7 | 2 | 4 |
| Number of Levels | 1 | 1 | 1 |
| Pitch | 0.400" (10.16mm) | 0.400" (10.16mm) | 0.400" (10.16mm) |
| Header Orientation | - | - | - |
| Plug Wire Entry | 180° | 180° | 180° |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - |
| Voltage - IEC | - | - | - |
| Current - UL | 15 A | 15 A | 15 A |
| Voltage - UL | 600 V | 600 V | 600 V |
| Wire Gauge or Range - AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.05-3mm² | 0.05-3mm² | 0.05-3mm² |
| Color | Green | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin |
| Features | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) |
