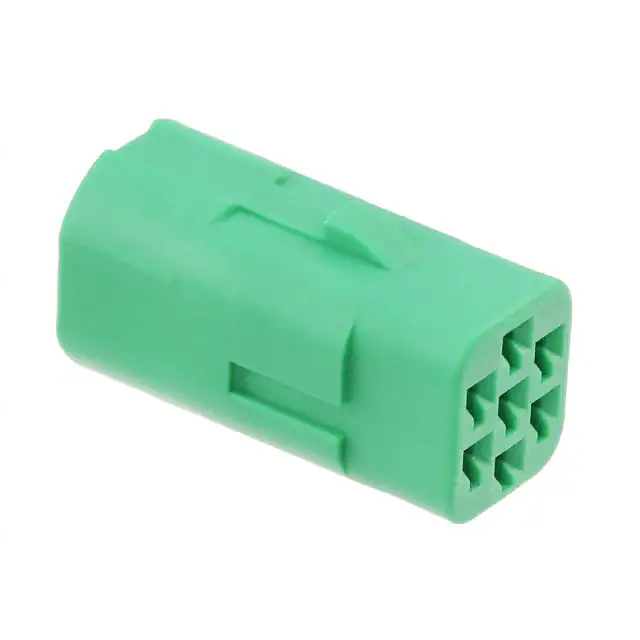

| Part Number | 2822343-1 | 2822363-1 | 2822393-1 | 2822346-1 | 2822344-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Plug | Plug | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Tab |
| Number of Positions | 7 | 2 | 8 | 6 | 7 |
| Pitch | 0.094" (2.40mm) | 0.197" (5.00mm) | 0.189" (4.80mm) | 0.189" (4.80mm) | 0.094" (2.40mm) |
| Number of Rows | 3 | 1 | 2 | 2 | 3 |
| Row Spacing | 0.079" (2.00mm) | - | 0.220" (5.60mm) | 0.220" (5.60mm) | 0.079" (2.00mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Latch Holder | Latch Holder | Latch Lock | Locking Ramp |
| Color | Green | Black | Black | Black | Green |
| Features | - | Sealed | Sealed | Sealed | Sealed |
