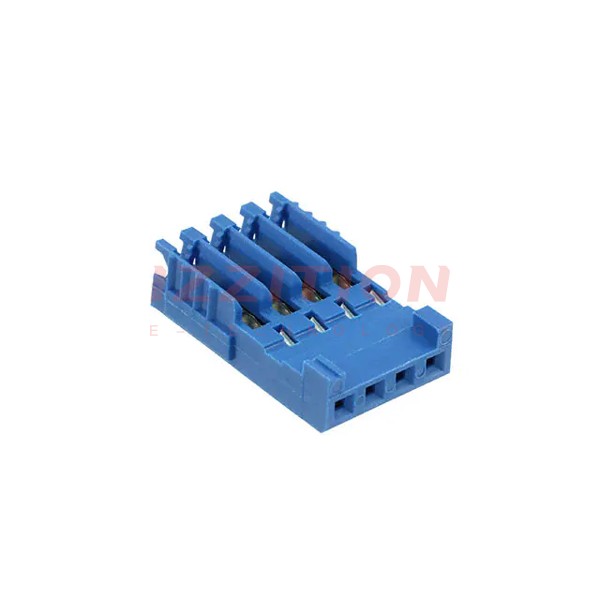

| Part Number | 281783-4 | 281784-4 | 281786-4 | 281783-2 | 281783-3 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Plug | Plug | Plug |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket | Female Socket |
| Number of Positions | 4 | 4 | 4 | 2 | 3 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Detent Lock |
| Cable Termination | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete | Discrete | Discrete | Discrete | Discrete |
| Wire Gauge | 24-26 AWG | 24-26 AWG | 26-28 AWG | 24-26 AWG | 24-26 AWG |
| Features | - | - | - | - | - |
| Contact Finish | Tin | Gold | Tin | Tin | Tin |
| Contact Finish Thickness | - | 15.0µin (0.38µm) | - | - | - |
| Color | Blue | Blue | Blue | Blue | Blue |
