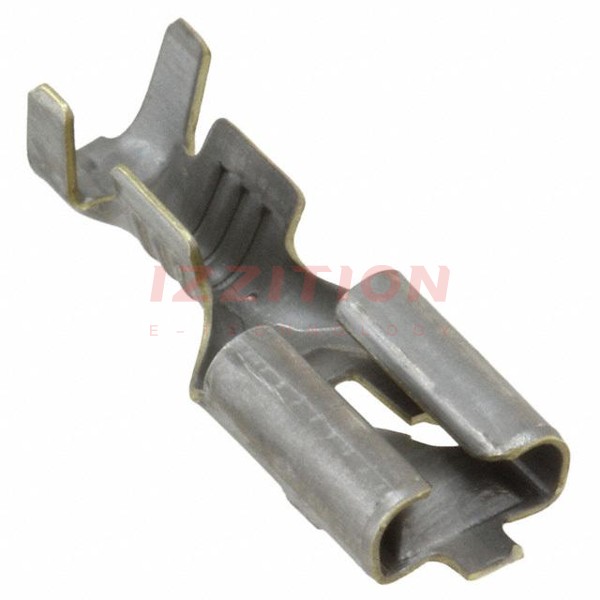

| Part Number | 280919-2 | 280919-4 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.252" (6.40mm) | 0.252" (6.40mm) |
| Length - Overall | 0.630" (16.00mm) | 0.630" (16.00mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 15-20 AWG | 15-20 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin |
