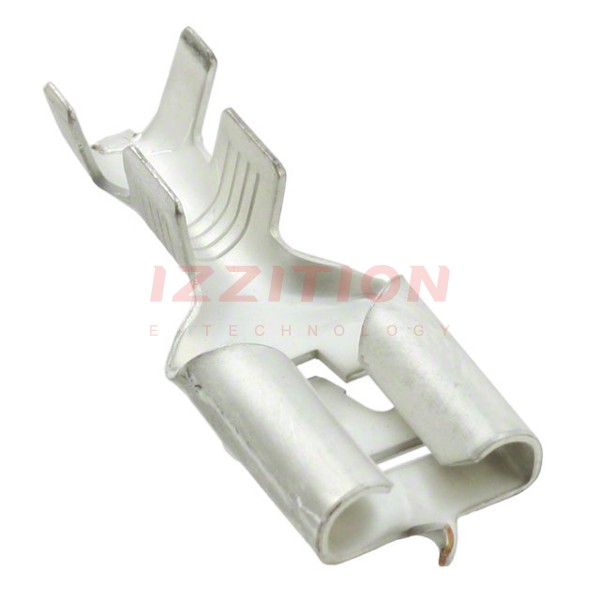

| Part Number | 280755-2 | 280756-2 | 280755-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Female | Female | Female |
| Tab Width | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Tab Thickness | 0.047" (1.19mm) | 0.047" (1.19mm) | 0.048" (1.22mm) |
| Tab Length | - | - | 0.419" (10.65mm) |
| Length - Overall | 1.102" (27.99mm) | 1.102" (27.99mm) | 1.142" (29.00mm) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 7-10 AWG | 10-12 AWG | 7-10 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin |
