280520-1
  • Share:

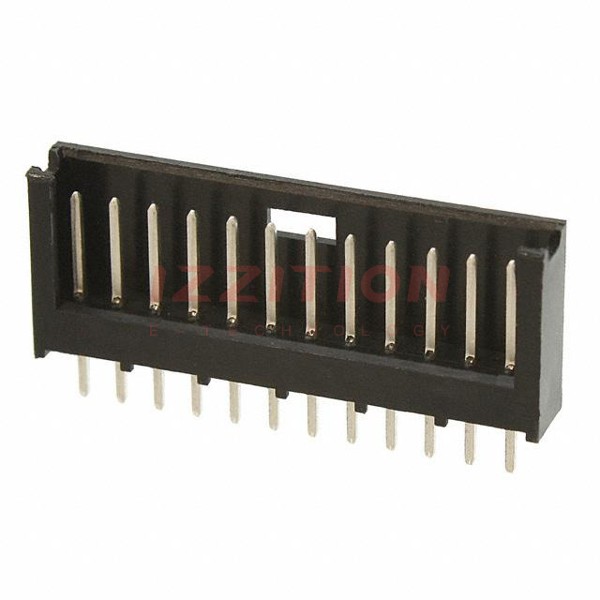

TE Connectivity AMP Connectors 280520-1

Manufacturer No:
280520-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
280520-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 12POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:12
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 3 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.260" (6.60mm)
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:0.563" (14.30mm)
Insulation Height:0.496" (12.60mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:118.1µin (3.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 80°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:40V
0 Remaining View Similar

In Stock

$2.02
366

Please send RFQ , we will respond immediately.

Similar Products

Part Number 280520-1 280520-2   280523-1   280521-1   280620-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active
Connector Type Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.156" (3.96mm)
Number of Positions 12 12 12 24 12
Number of Rows 1 1 1 2 1
Row Spacing - Mating - - - 0.100" (2.54mm) -
Number of Positions Loaded All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 3 Wall Shrouded - 2 Wall
Mounting Type Through Hole Through Hole Through Hole, Right Angle Through Hole Through Hole, Right Angle
Termination Solder Solder Solder Solder Solder
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock
Contact Length - Mating 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.394" (10.00mm)
Contact Length - Post 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm) 0.138" (3.50mm) 0.126" (3.20mm)
Overall Contact Length 0.563" (14.30mm) 0.563" (14.30mm) - 0.563" (14.30mm) -
Insulation Height 0.496" (12.60mm) 0.496" (12.60mm) 0.197" (5.00mm) 0.496" (12.60mm) 0.346" (8.80mm)
Contact Shape Square Square Square Square Rectangular
Contact Finish - Mating Tin Gold Tin Tin Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm) 15.0µin (0.38µm) 118.1µin (3.00µm) 118.1µin (3.00µm) -
Contact Finish - Post Tin Tin Tin Tin Tin
Contact Material Brass Brass Brass Brass Brass
Insulation Material Thermoplastic Thermoplastic Thermoplastic Thermoplastic Polycarbonate, Glass Filled
Features - - - - -
Operating Temperature -40°C ~ 80°C -40°C ~ 80°C -40°C ~ 80°C -40°C ~ 80°C -
Ingress Protection - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Green
Current Rating (Amps) 3A 3A 3A 3A -
Voltage Rating 40V 40V 40V 40V -
