TE Connectivity AMP Connectors-280371-2 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	280371-2	280372-2	280377-2	280379-2	280378-2	280381-2	280374-2	280373-2	280371-3	280375-2	280370-2	280371-1
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	4	6	2	6	4	10	10	8	4	15	2	4
Number of Rows	1	1	1	1	1	1	1	1	1	1	1	1
Row Spacing - Mating	-	-	-	-	-	-	-	-	-	-	-	-
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable	Board to Board or Cable
Shrouding	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall	Shrouded - 3 Wall
Mounting Type	Through Hole	Through Hole	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock
Contact Length - Mating	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)	0.260" (6.60mm)
Contact Length - Post	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)	0.138" (3.50mm)
Overall Contact Length	0.563" (14.30mm)	0.563" (14.30mm)	-	-	-	-	0.563" (14.30mm)	0.563" (14.30mm)	0.563" (14.30mm)	0.563" (14.30mm)	0.563" (14.30mm)	0.563" (14.30mm)
Insulation Height	0.496" (12.60mm)	0.496" (12.60mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.197" (5.00mm)	0.496" (12.60mm)	0.496" (12.60mm)	0.496" (12.60mm)	0.496" (12.60mm)	0.496" (12.60mm)	0.496" (12.60mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Gold	Tin
Contact Finish Thickness - Mating	15.0µin (0.38µm)	16.0µin (0.41µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	31.5µin (0.80µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	118.1µin (3.00µm)
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass	Brass
Insulation Material	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic	Thermoplastic
Features	-	-	-	-	-	-	-	-	-	-	-	-
Operating Temperature	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C	-40°C ~ 80°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A
Voltage Rating	40V	40V	40V	40V	40V	40V	40V	40V	40V	40V	40V	40V

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.260" (6.60mm)
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	0.563" (14.30mm)
Insulation Height:	0.496" (12.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Thermoplastic
Features:	-
Operating Temperature:	-40°C ~ 80°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	40V

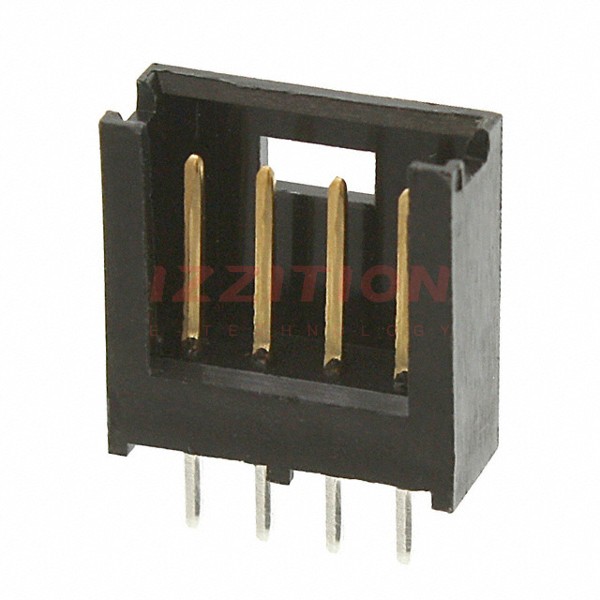

TE Connectivity AMP Connectors 280371-2

Product Attributes

In Stock
