Please send RFQ , we will respond immediately.

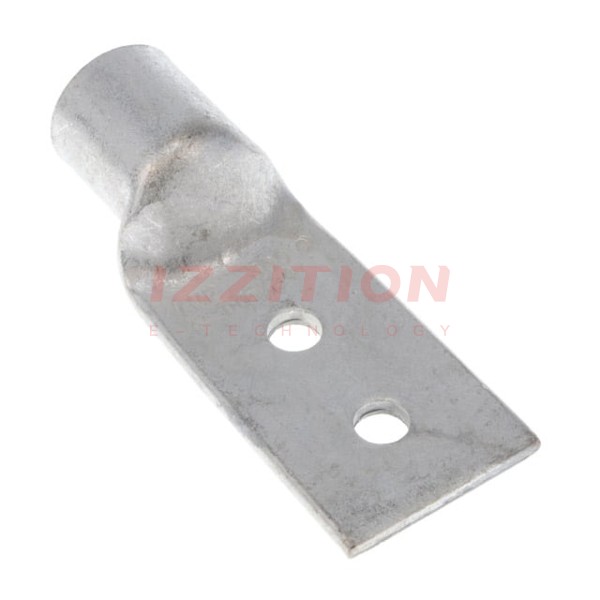

| Part Number | 276917-1 | 276918-1 | 276916-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Rectangular Tongue | Standard | Standard |
| Stud/Tab Size | 5/16 Stud | 3/8 Stud | 1/2 Stud |
| Terminal Style | Two Stud Holes | Two Stud Holes | Two Stud Holes |
| Tab Thickness | 0.160" (4.06mm) | 0.310" (7.87mm) | 0.220" (5.59mm) |
| Length - Overall | 3.580" (90.93mm) | 4.180" (106.17mm) | 4.460" (113.28mm) |
| Width - Outer Edges | 1.400" (35.56mm) | 1.280" (32.51mm) | 1.950" (49.53mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp, Barrel | Crimp, Barrel | Crimp, Barrel |
| Wire Gauge | 300MCM (kcmil) | 600MCM (kcmil) | 600MCM (kcmil) |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Features | - | - | - |
| Color | - | - | - |
