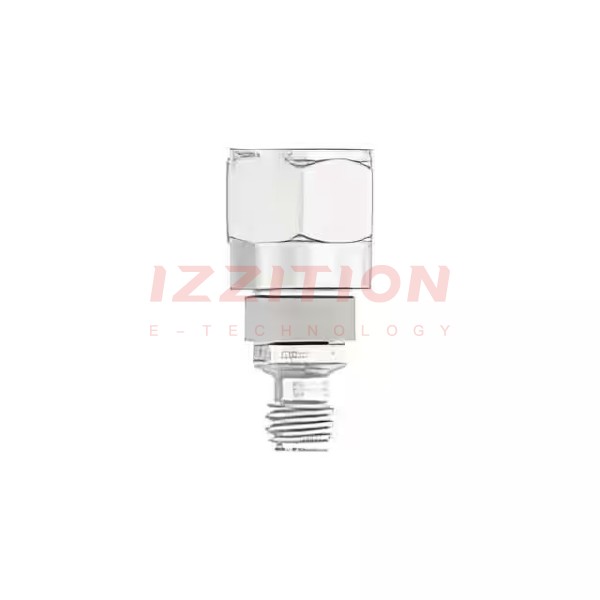

| Part Number | 2385347-1 | 2385349-1 | 2385340-1 | 2385341-1 | 2385342-1 | 2385343-1 | 2385344-1 | 2385345-1 | 2385346-1 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Adapter Type | Plug to Jack | Plug to Plug | Plug to Plug | Plug to Jack | Plug to Plug | Jack to Jack | Plug to Jack | Plug to Jack | Jack to Jack |
| Conversion Type | Between Series | Between Series | Between Series | Between Series | Same Series | Same Series | Same Series | Between Series | Between Series |
| Adapter Series | 1.0mm to 1.35mm | 1.0mm to 1.35mm | 1.35mm to 1.85mm | 1.35mm to 1.85mm | 1.35mm to 1.35mm | 1.35mm to 1.35mm | 1.35mm to 1.35mm | 1.0mm to 1.35mm | 1.0mm to 1.35mm |
| Center Gender | Female to Male | Male to Male | Male to Male | Female to Male | Male to Male | Female to Female | Female to Male | Female to Male | Female to Female |
| Convert From (Adapter End) | 1.0mm Jack, Female Socket | 1.0mm Plug, Male Pin | 1.35mm Plug, Male Pin | 1.35mm Jack, Female Socket | 1.35mm Plug, Male Pin | 1.35mm Jack, Female Socket | 1.35mm Jack, Female Socket | 1.0mm Plug, Male Pin | 1.0mm Jack, Female Socket |
| Convert To (Adapter End) | 1.35mm Plug, Male Pin | 1.35mm Plug, Male Pin | 1.85mm Plug, Male Pin | 1.85mm Plug, Male Pin | 1.35mm Plug, Male Pin | 1.35mm Jack, Female Socket | 1.35mm Plug, Male Pin | 1.35mm Jack, Female Socket | 1.35mm Jack, Female Socket |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Style | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight | Straight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - | - | - | - |
| Fastening Type | Threaded, Threaded | Threaded, Threaded | Threaded, Threaded | Threaded, Threaded | Threaded, Threaded | Threaded, Threaded | Threaded, Threaded | Threaded, Threaded | Threaded, Threaded |
| Frequency - Max | 90 GHz | 90 GHz | 67 GHz | 67 GHz | 90 GHz | 90 GHz | 90 GHz | 90 GHz | 90 GHz |
| Ingress Protection | - | - | - | - | - | - | - | - | - |
| Center Contact Plating | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Features | - | - | - | - | - | - | - | - | - |
