Please send RFQ , we will respond immediately.

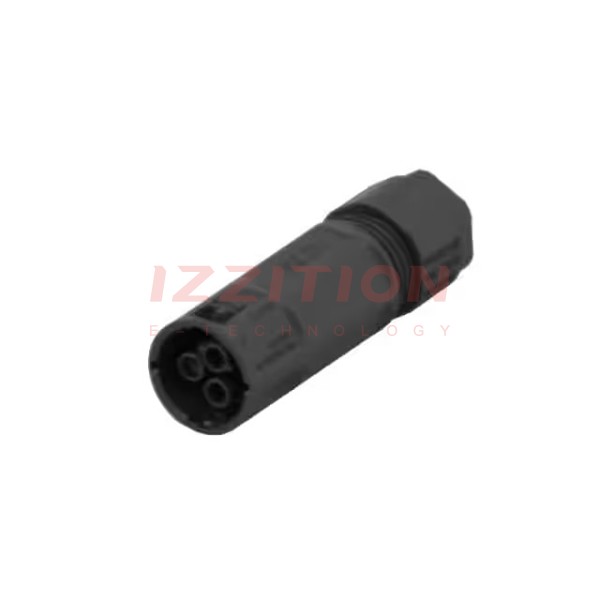

| Part Number | 2379239-1 | 2379237-1 | 2379238-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Style | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire |
| Connector Type | Receptacle, Female Sockets | Receptacle Housing for Pin Contact | Plug, Male Pins |
| Number of Positions | 3 | 3 | 3 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Screw |
| Pitch | - | - | - |
| Fastening Type | - | - | - |
| Features | - | - | - |
| Housing Color | Black | Black | Black |
| Wire Gauge | 14-16 AWG | - | - |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Tin | Tin | Tin |
| Housing Material | Polybutylene Terephthalate (PBT), Polycarbonate (PC) | Polybutylene Terephthalate (PBT), Polycarbonate (PC) | Polybutylene Terephthalate (PBT), Polycarbonate (PC) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
