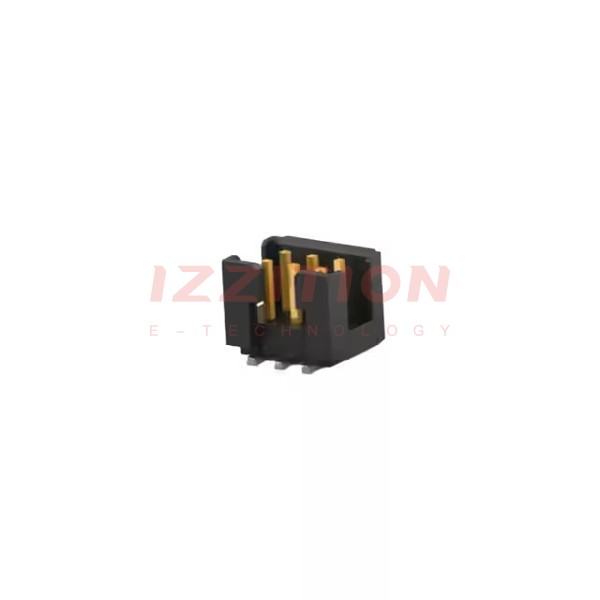

| Part Number | 2373376-6 | 2373376-8 | 2373378-6 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions | 6 | 8 | 6 |
| Number of Rows | 2 | 2 | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Positions Loaded | All | All | All |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 2 Wall | Shrouded - 2 Wall | Shrouded - 2 Wall |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock | Detent Lock |
| Contact Length - Mating | 0.145" (3.70mm) | 0.145" (3.70mm) | 0.145" (3.70mm) |
| Contact Length - Post | - | - | - |
| Overall Contact Length | - | - | - |
| Insulation Height | 0.252" (6.40mm) | 0.252" (6.40mm) | 0.252" (6.40mm) |
| Contact Shape | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) | 3.94µin (0.100µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black |
| Current Rating (Amps) | 2A | 2A | 2A |
| Voltage Rating | 125VAC/DC | 125VAC/DC | 125VAC/DC |
