Please send RFQ , we will respond immediately.

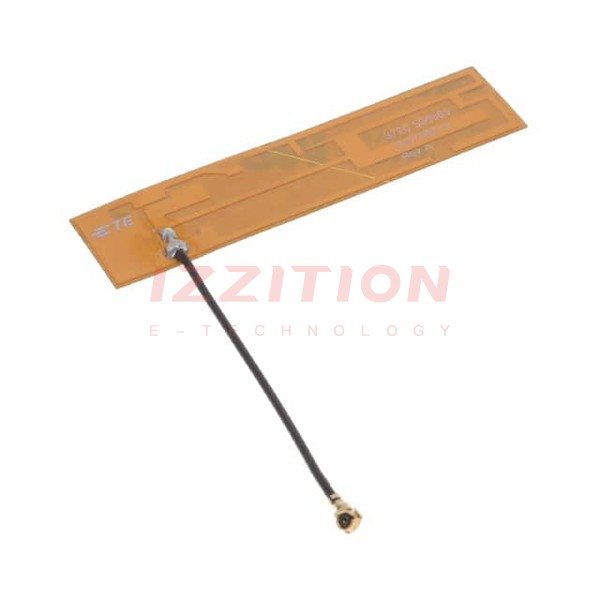

| Part Number | 2367286-1 | 2367286-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| RF Family/Standard | Cellular | Cellular |
| Frequency Group | Wide Band | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.94GHz, 2.5GHz | 829MHz, 1.94GHz, 2.5GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz |
| Antenna Type | PCB Trace | PCB Trace |
| Number of Bands | 3 | 3 |
| VSWR | 4 | 4 |
| Return Loss | - | - |
| Gain | 4dBi, 4dBi, 4dBi | 4dBi, 4dBi, 4dBi |
| Power - Max | - | - |
| Features | Cable - 200mm | Cable - 200mm |
| Termination | MHF | MHF |
| Ingress Protection | - | - |
| Mounting Type | Adhesive | Adhesive |
| Height (Max) | 0.007" (0.19mm) | 0.007" (0.19mm) |
| Applications | LTE, UMTS, WCDMA | LTE, UMTS, WCDMA |
